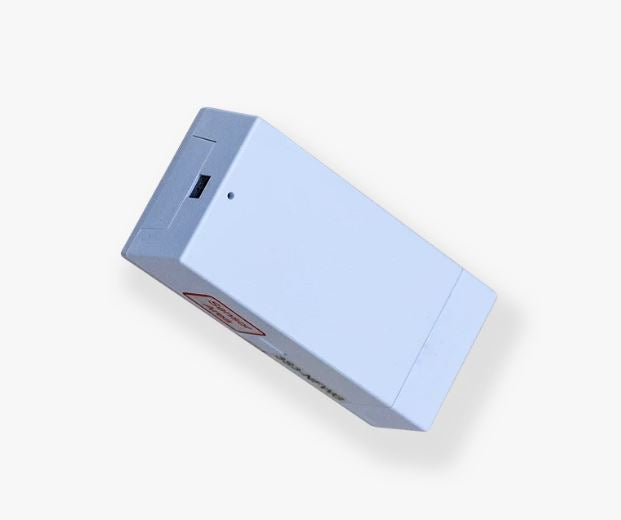

Pelican - Wireless Proximity Sensor - PRX1

The PRX1 communicates with its primary Pelican thermostat over the Pelican wireless network.

Common Applications

• Wireless Door/Window Sensor

Turn OFF the thermostat when the door or window opens.
Send a security notification.
View the historical state of the door or window.

• Wireless Occupancy Sensor Input

Automate occupied and unoccupied setbacks.
View the historical occupied/unoccupied status.

• Web-App enabled control.

Right from the Pelican App you can manage all aspects of the Pelican Wireless Proximity Sensor: set delay times, enable/disable the device, view historical data, and more.

Wireless Proximity Sensor

INDICATOR
Status Light
For the first two minutes after powered-on, the Wireless Proximity Sensor has a status light on it that indicates the current reading of its magnetic sensor. If it is detecting a magnet the light is ON, if it is not detecting a magnet the light is OFF.

INPUT
2-Wire
The Wireless Proximity Sensor can accept an optional 2-wire external reed (magnetic) sensor to detect the state of a door or window. OR it can accept a 2-wire external dry-contact output from a third-party occupancy sensor to detect the occupied/unoccupied state of the room.

SENSOR
Magnetic Switch
The Wireless Proximity Sensor has a built-in reed (magnetic) sensor that can easily be used with the provided door/window mountable magnet to detect the state of a door or window.

POWER
(2) AA Batteries
The PRX1 is powered by 2AA Batteries (included with purchase). The device is designed to run for at least one (1) year* and will notify upon a low battery status.
