Pelican - Wireless PTAC Controller - TCM1

Wireless PTAC Controller

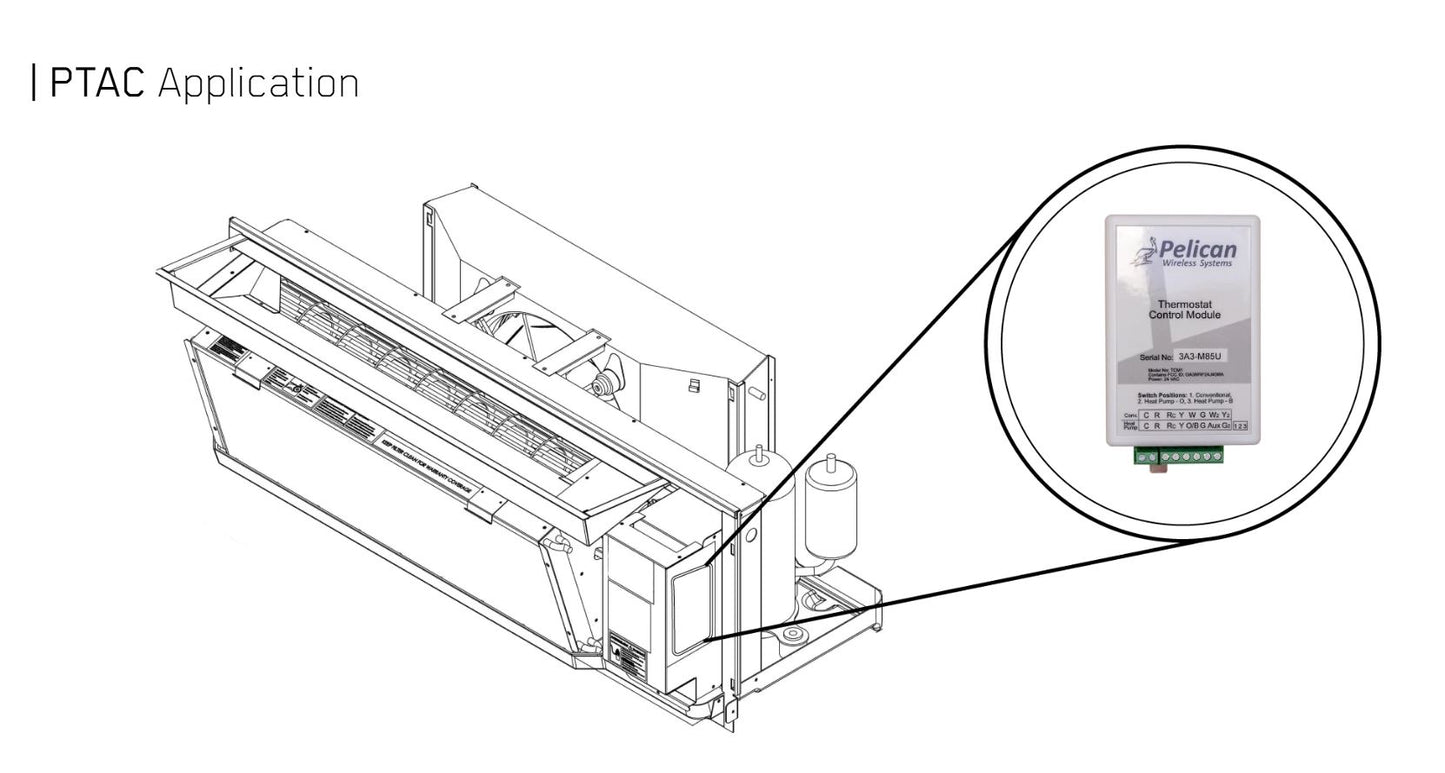

The TCM1 can be mounted inside a PTAC unit and, when combined with a Pelican RTI Series Remote Wireless Sensor, can be used to maintain a hotel guest room's temperature.

DESIGN
Compact
The small footprint of the TCM1 makes it easy to fit inside a PTAC unit.

MULTIPLE AVERAGING SENSORS
Up to 8 Per TCM1
Each TCM1 can communicate with up to 8 Pelican RT1 Series thermostats to average the temperature around the guest room.

WEB-APP CONNECTED
Virtual
Right from the Pelican Connect™ app you can view what your TCM1 and its associated RT1 Series Pelican remote wireless sensor.

TCM1 Terminals

• WIRELESS IDENTIFIER
  Serial Number (XXX-XXXX)
  A TCM1 is identified on your Pelican Connect™ App through a unique identifier. The TCM1 can be named according to the room it is installed and then connect to its RT1 Series Remote Wireless Sensor through the app.
• TOGGLE SWITCH
  Heat Pump or Conventional
  The toggle switch on the bottom of the TCM1 lets you select if it is controlling a Heat Pump (O) or (b) or a Conventional PTAC unit.
• DIGITAL OUTPUTS
  (Y, Y2, W, W2, G) HVAC Unit Control
  The TCM1 will enable the equipment's heating, cooling, and fan through standard 24VAC outputs.
• POWER
  24VAC
  The TCM1 is powered by the PTAC's internal 24VAC transformer.
