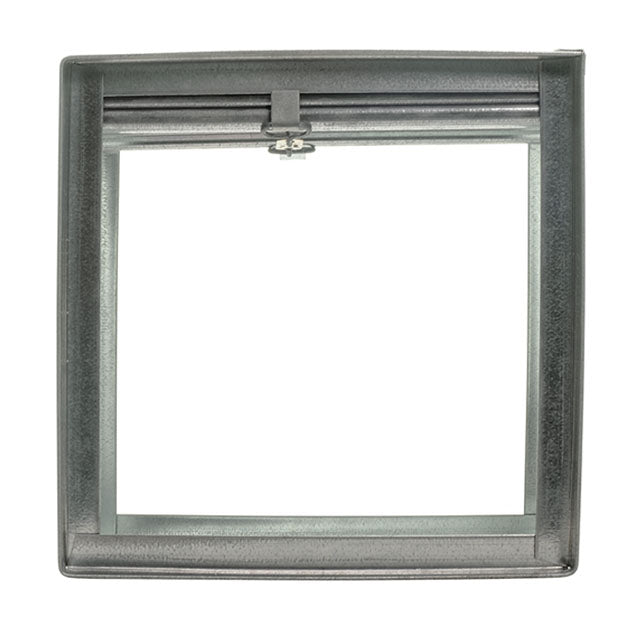

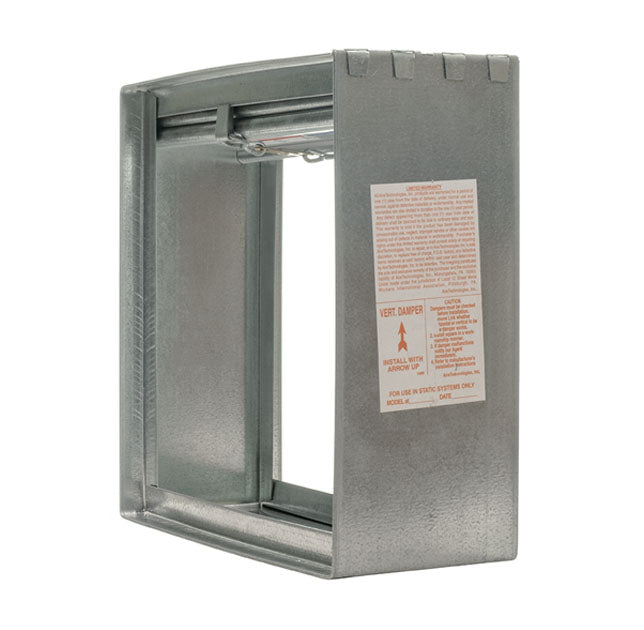

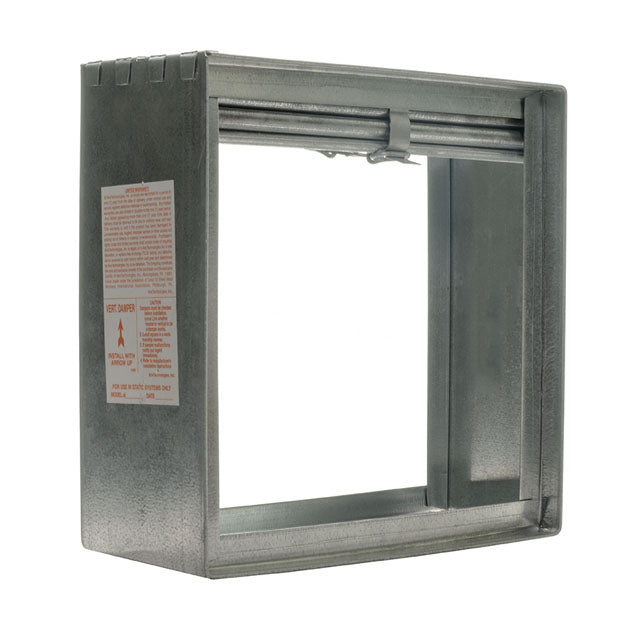

Series 05 Type A - Static Fire Damper

Series 05 Type A - Static Fire Damper

Click here for Submittal

Standard Profile – 4¼” 22Ga 1 Piece Rollformed Frame – Fire Damper
UL Classified UL 555 – 3 Hour Rating, Static for Use in Installations Rated 3 Hours or Greater

Specifications:

Blades

Blades in Air-Stream

Material

Galvanized Steel – Standard
Stainless Steel – Optional

Fusible Link

165° Rated Link – Standard
212° Rated Link – Optional

Orientation

Available for Vertical or Horizontal Installations

22Ga Optional Sleeves

12” Sleeve – Standard
8”, 17”, 20”, or 24” Lengths – Optional

Vertical Sizes

4” x 4” to 60” x 60”
Multi-section up to 120” x 120”

Horizontal Sizes

4” x 4” to 40” x 60”
Multi-section 120” x 60” or 80” x 96”

These products are custom made and, according to our policy, can not be returned or refunded. Please connect with our team if you need to double check any sizes
