Collection: Return Air Grilles
Shop return air grilles and HVAC return vents for walls, ceilings, doors, and filter applications. The lineup covers 1/2" fin and 45° fixed-blade return grilles, eggcrate and perforated mesh ceiling returns, privacy V-blade transfer grilles, and filter grilles with a hinged face for tool-free filter changes. Choose from AMS steel returns and Hart & Cooley models in standard sizes, or send us your plans for custom sizes and a full take-off. Ready-to-ship stock ships free across the continental US from our warehouses in San Francisco, Dallas, Garland, Fort Worth, and Laredo.
-

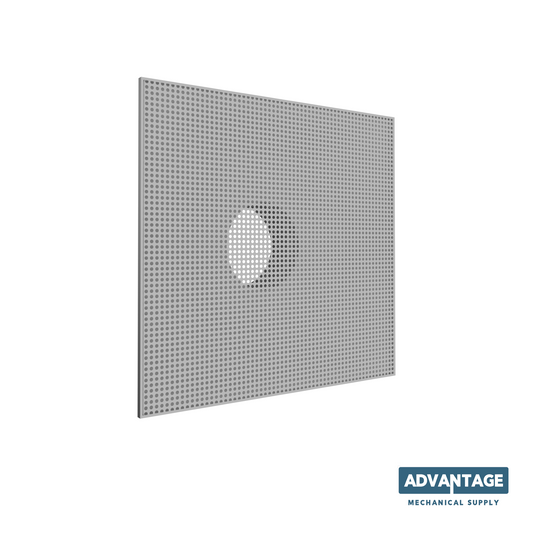

Steel Mesh Face Ceiling Lay-In Return 24X24 - RPE
Regular price From $105.30 USDRegular price$0.00 USDSale price From $105.30 USD -
Steel Return Air Filter Grille, 1/2" Fin Spacing - White
Regular price From $30.70 USDRegular price$0.00 USDSale price From $30.70 USD -
Ceiling Trim Kit for Lay-Ins - MPR
Regular price From $20.90 USDRegular price$26.20 USDSale price From $20.90 USDSale -

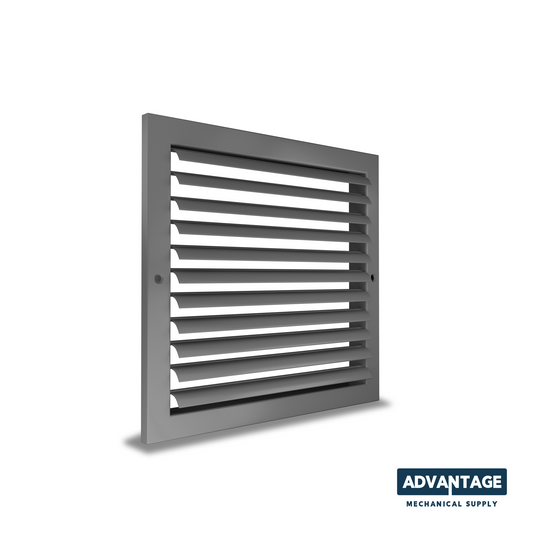

Steel Return 45° Fixed Deflection Grille - R45
Regular price From $25.10 USDRegular price$31.40 USDSale price From $25.10 USDSale -

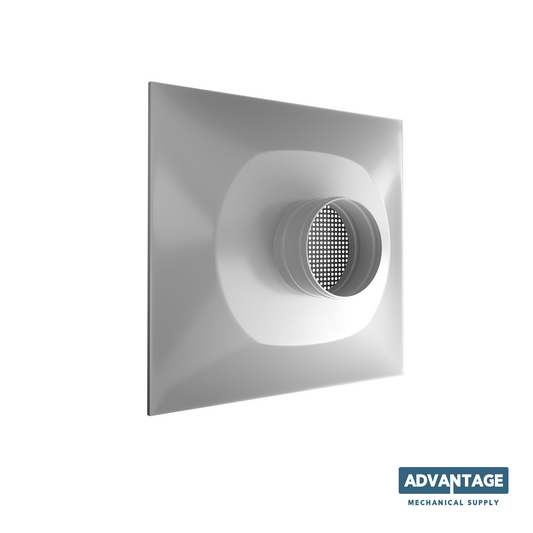

Universal Neck Steel Mesh Ceiling Diffuser/Return 24X24 with Insulation - RPEP
Regular price $98.00 USDRegular price$0.00 USDSale price $98.00 USD -
Aluminum Frame, Plastic Eggcrate Return Grille - RCUL
Regular price From $53.70 USDRegular price$67.10 USDSale price From $53.70 USDSale -
Aluminum Sidewall Adjustable-Blade Register - A618MS
Regular price From $22.60 USDRegular price$0.00 USDSale price From $22.60 USD -
Steel Return Air Grille, 1/2" Fin Spacing - 650 - White
Regular price From $8.50 USDRegular price$0.00 USDSale price From $8.50 USD -
Steel Stamped Return Grille with Insulation - RPD
Regular price From $65.60 USDRegular price$82.00 USDSale price From $65.60 USDSale -
Privacy V-shaped Steel Return Grilles - RPC
Regular price From $69.80 USDRegular price$73.80 USDSale price From $69.80 USDSale -
Ceiling Stamped Face Four Way Register
Regular price From $19.00 USDRegular price$0.00 USDSale price From $19.00 USD -
Return Grille with 45° Fixed Blades - RHF
Regular price From $71.00 USDRegular price$88.70 USDSale price From $71.00 USDSale -
Curved Blade Register 1-way
Regular price From $11.40 USDRegular price$0.00 USDSale price From $11.40 USD -
Ceiling Steel Return Grille - R30
Regular price From $25.94 USDRegular price$31.54 USDSale price From $25.94 USDSale -
Steel Return Mesh, Face Only - RPP
Regular price From $67.40 USDRegular price$84.20 USDSale price From $67.40 USDSale -
Aluminum Frame, Aluminum Eggcrate Return Grille
Regular price From $252.70 USDRegular price$303.20 USDSale price From $252.70 USDSale
Return grilles by type
Filter return grilles. A filter grille holds the air filter right behind the face, so you change it from inside the room instead of at the air handler. The hinged face swings open with no tools. Common on closet air handlers, apartments, and systems without a filter rack. Shop filter return grilles.
Wall return grilles. Sidewall return vents with 1/2" fin spacing (the most common residential style) or 45° fixed blades that angle the view away from the wall cavity. Shop wall return grilles.
Ceiling return grilles. Lay-in eggcrate, perforated mesh, and stamped-face returns for 2x2 T-bar grids, plus the R30 for hard-lid ceilings. Eggcrate cores pass the most air for their size, which keeps noise down on high-CFM returns. Installing a lay-in into drywall? The MPR trim kit converts it to surface mount. Shop ceiling return grilles.
Privacy grilles. V-shaped blades on the RPC block line of sight, so they’re the standard pick for door transfer grilles, bathrooms, and openings between offices.
Project orders
Send a mechanical set through the quote form or call +1 (334) 822-4897, and we’ll return a take-off covering every return grille, transfer grille, and supply register on the job. Running returns through a drop ceiling? Add supply and return drop boxes to the same order.
Frequently asked questions
What’s the difference between a return air grille and a return air vent?
They’re the same part. “Return grille” is the trade term and what you’ll see on plans and spec sheets; “return vent” and “air return vent” are what most homeowners call it. Both refer to the louvered cover over the opening that pulls air back to the HVAC system.
Do HVAC return vents need a filter?
Only if the system is designed to filter at the return grille. If the air handler already has a filter rack, adding a filter at the return grille doubles the restriction and raises static pressure. Use a filter return grille when the return is the only filter location, such as closet air handlers and many apartments.
What is a transfer grille?
A transfer grille is a return-style grille installed in a door or interior wall that lets air pass from a closed room back toward the central return. Privacy V-blade grilles are the standard choice because the angled blades block the view through the opening.
Where should return air vents go?
Central locations like hallways work for one main return, but bedrooms with doors that close need their own return or a transfer grille so the room doesn’t pressurize. In cooling-heavy climates, high wall or ceiling returns pull hot air that collects up top. In heating-heavy climates, low returns pick up cooler air near the floor.
Do you make custom return grilles?
Yes. We build non-standard sizes and price full projects from plans. Send your mechanical drawings through the quote form and we’ll return a take-off for every return and supply outlet on the job.
How do I measure a return air grille?
Remove the grille and measure the wall or ceiling opening, width first, then height. That’s the nominal size you order; the face of the new grille will be larger so it overlaps the opening. For a filter grille, the nominal size also matches the filter it holds, so a 20x25 filter grille takes a 20x25 filter. Then confirm the grille’s free area handles the system’s return airflow. Undersized return grilles whistle and starve the system of air.
How long does shipping take for return air grilles?
In-stock, ready-to-ship return grilles arrive within 2 to 5 days after they ship, depending on your location and shipping method. Made-to-order items, including custom sizes, have their own production time, listed on the product page and in your order confirmation. Large grilles over 24" × 24" may ship by pallet and arrive separately from smaller items in the same order. Need it faster? Contact us before ordering to ask about expedited production or delivery.
