Return Grille with 45° Fixed Blades - RHF

Click here for SUBMITTAL

Request Other Sizes or Configurations

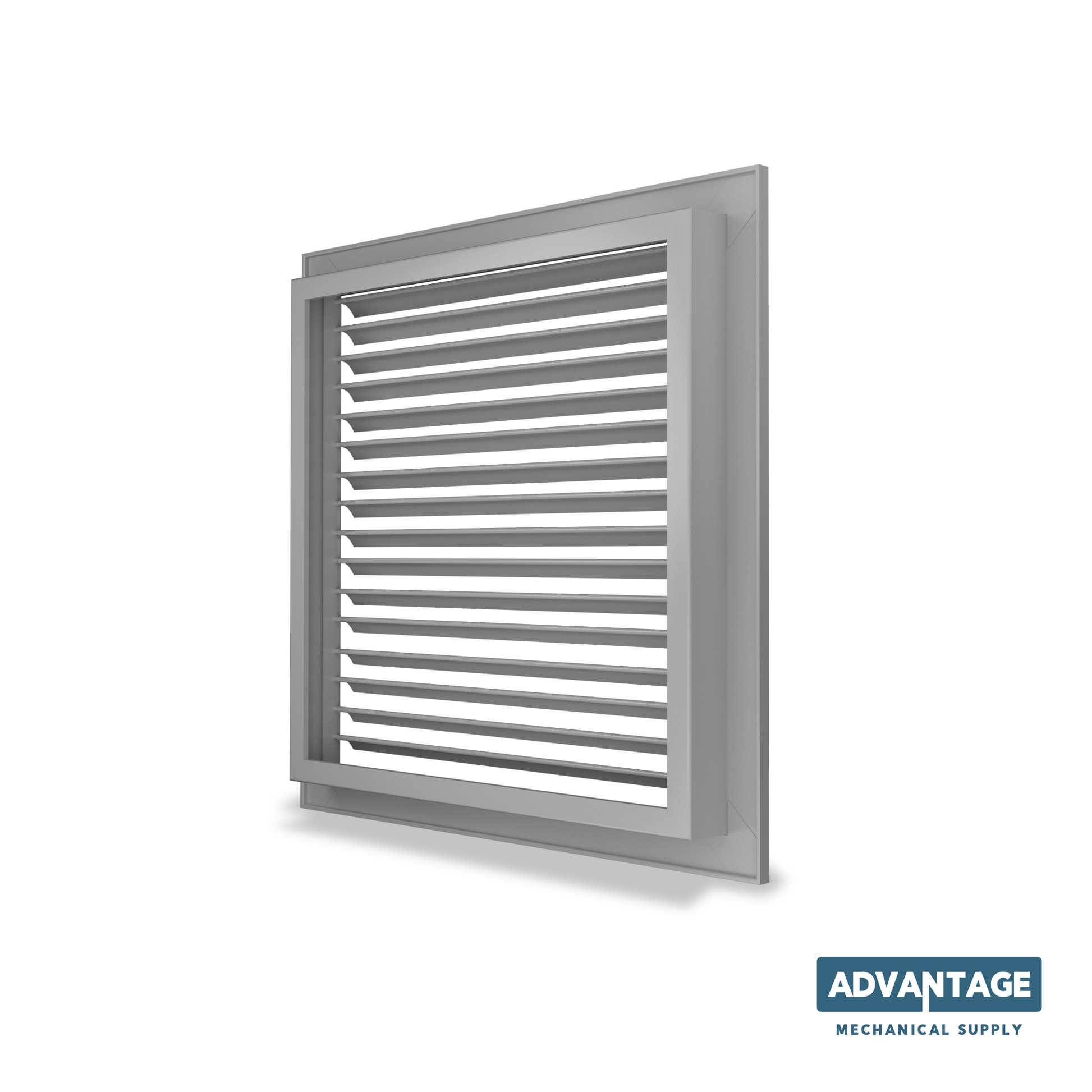

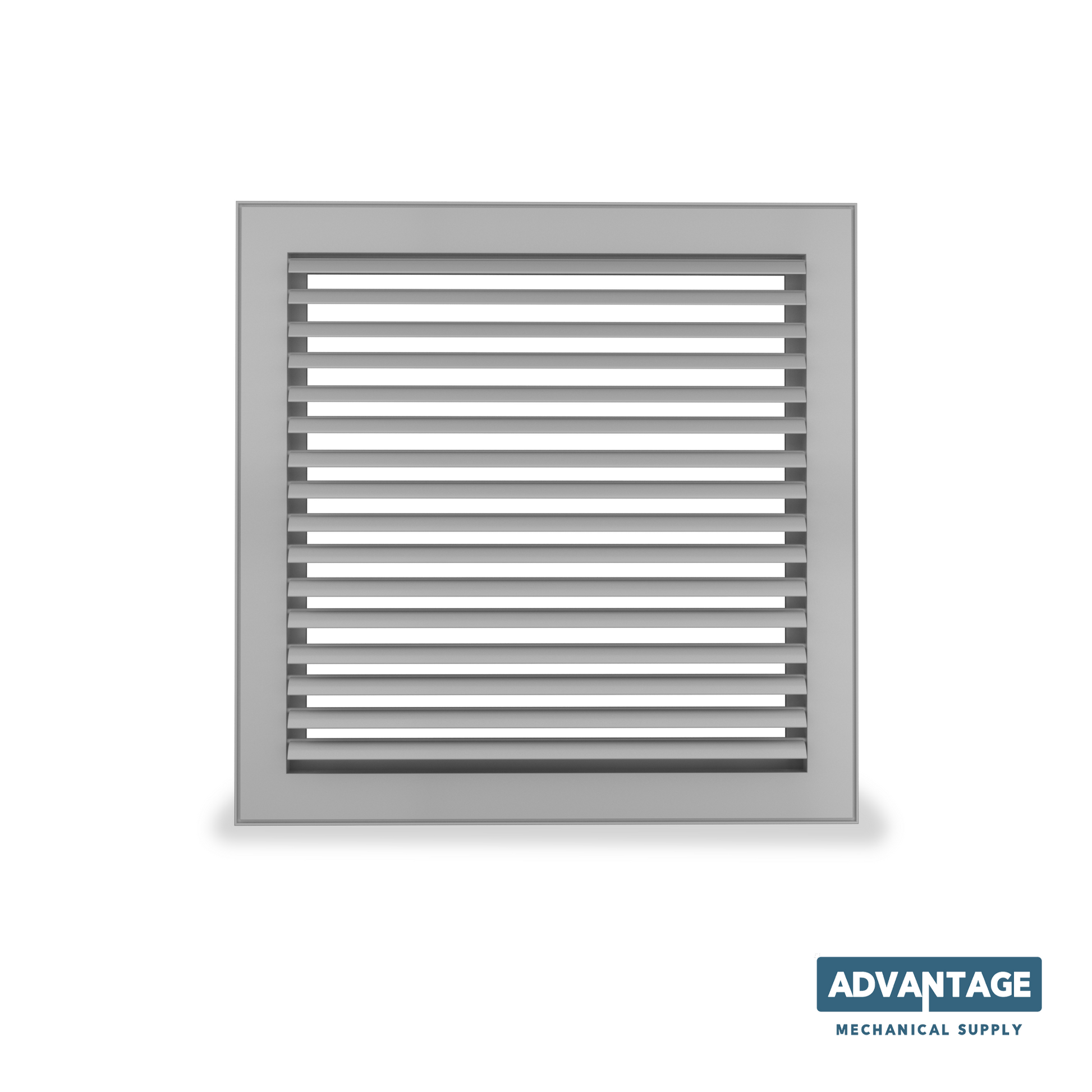

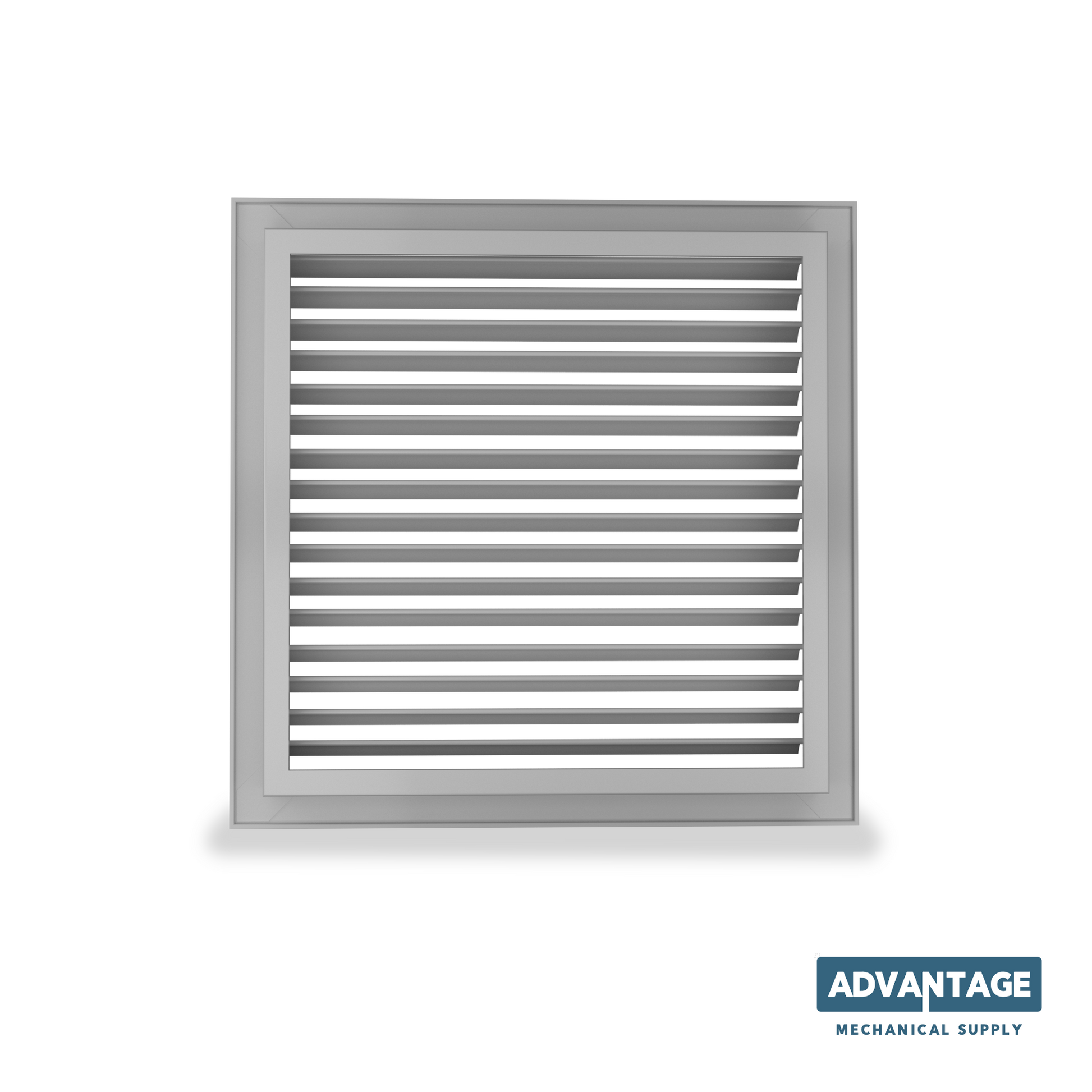

The RHF return grille combines fixed 45° curved blades with a hinged filter-access frame. Blades run parallel to the longest dimension, while the folding frame provides convenient access to the receiving filter box for filter service. The steel construction suits wall or ceiling return-air installations in residential and commercial spaces.

Key Features:

  • Blade Design: Fixed curved blades at 45° deflection, parallel to the longest dimension.
  • Filter Access: Hinged frame and filter-holder arrangement accommodate a filter up to 1” thick. Confirm the required filter dimensions and whether a filter is included before ordering.
  • Material: Steel construction (RHFA). An aluminum alternative (RHFL) is available by request; it is not a material selection on this listing.
  • Installation: Suitable for wall or ceiling return-air applications. Confirm opening, overall frame dimensions, and service clearance before ordering.
  • Size Options: Current rough-opening selections, width × height, are 8” × 8”, 12” × 12”, 16” × 16”, 24” × 24”, 36” × 24”, 42” × 24”, and 48” × 24”. Contact us for other sizes or custom requirements.

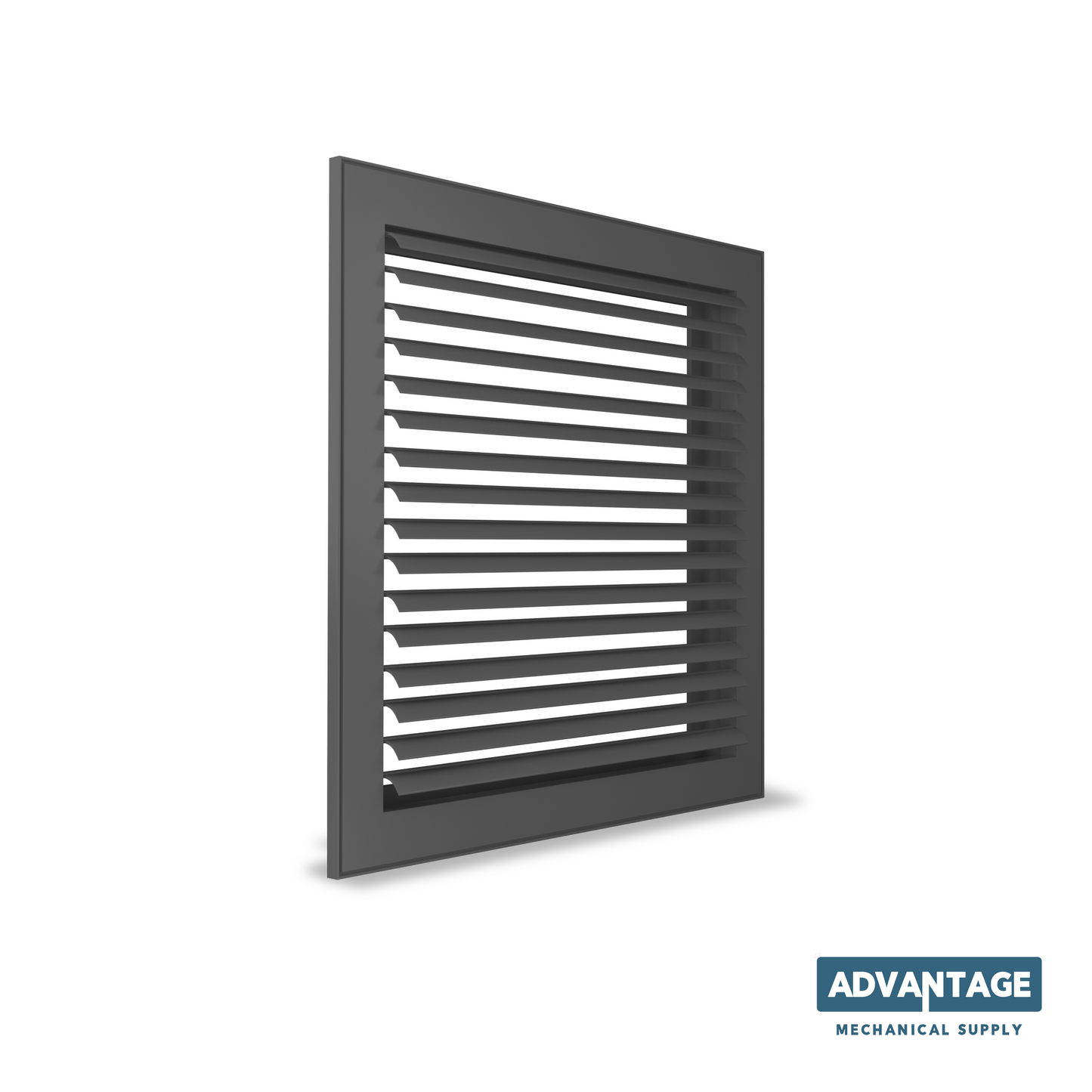

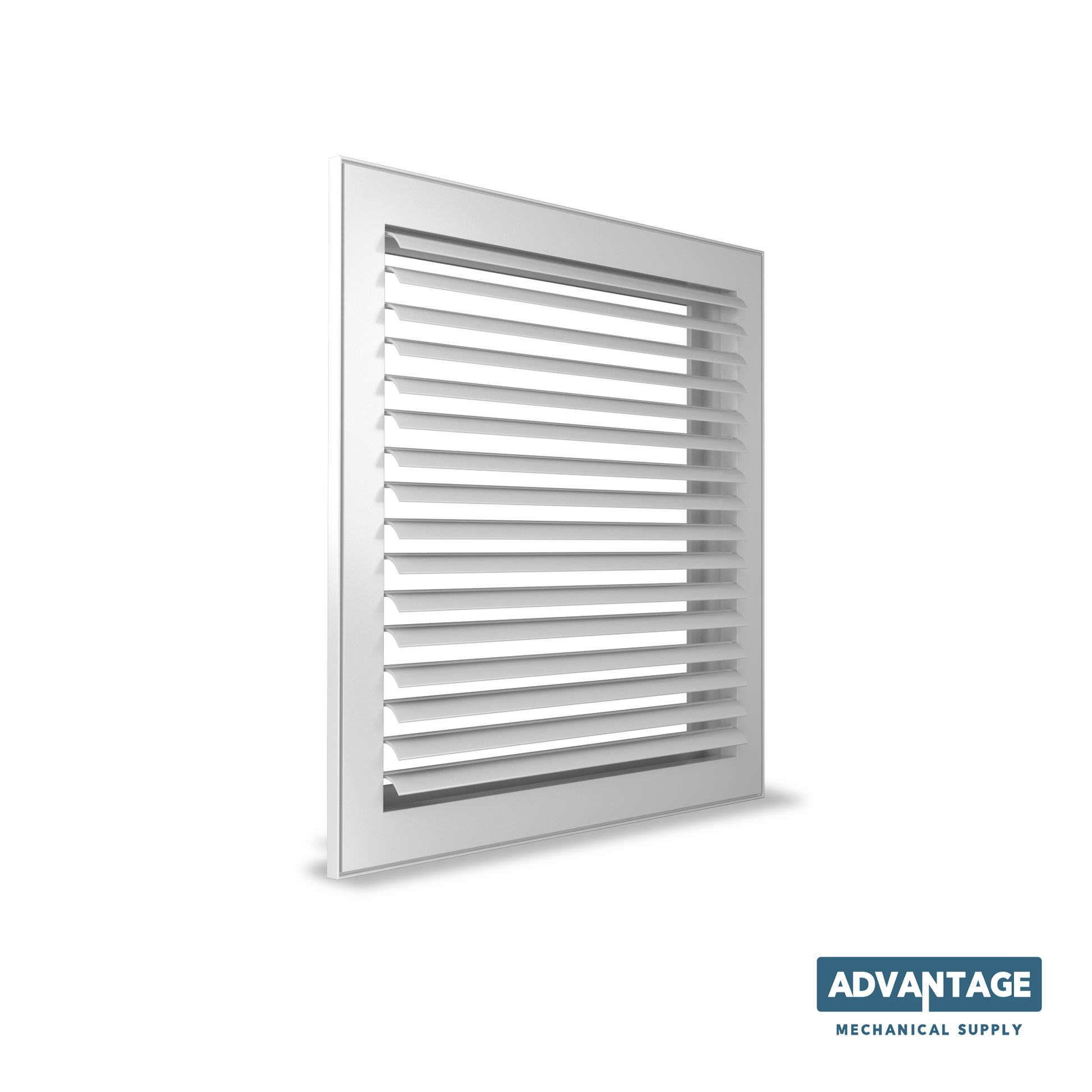

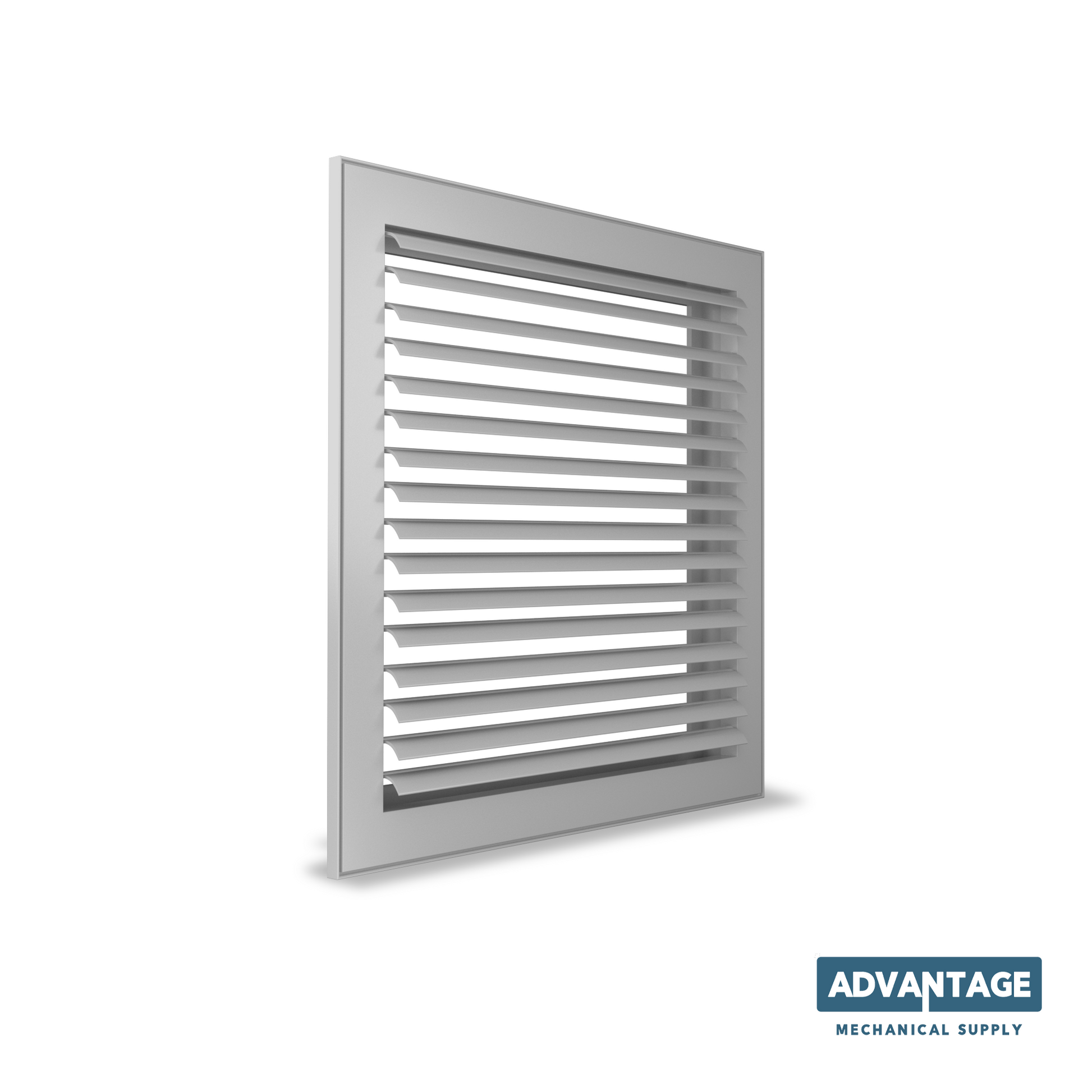

  • Finish Options: Baked electrostatic polyester paint. White is the standard color; Metallic Gray and Black Matte are additional listed selections. A foam frame seal helps prevent dust marks around the frame.
  • Availability and Lead Times: This product is not routinely stocked. Configurations are normally made to order. Made-to-order configurations have an estimated production lead time of 3–4 weeks. Shipping transit time is additional. Select your size and finish to view availability for your exact configuration.

No substitutions without approval: If your selected configuration is unavailable, we may contact you with an alternative. We will not substitute the size, material, filter arrangement, or finish without your approval.

Choose the RHF for fixed-blade return airflow with convenient hinged access for filter maintenance.
