4-Way Steel Diffuser - D4P (F4P)
Request Other Sizes or Configurations

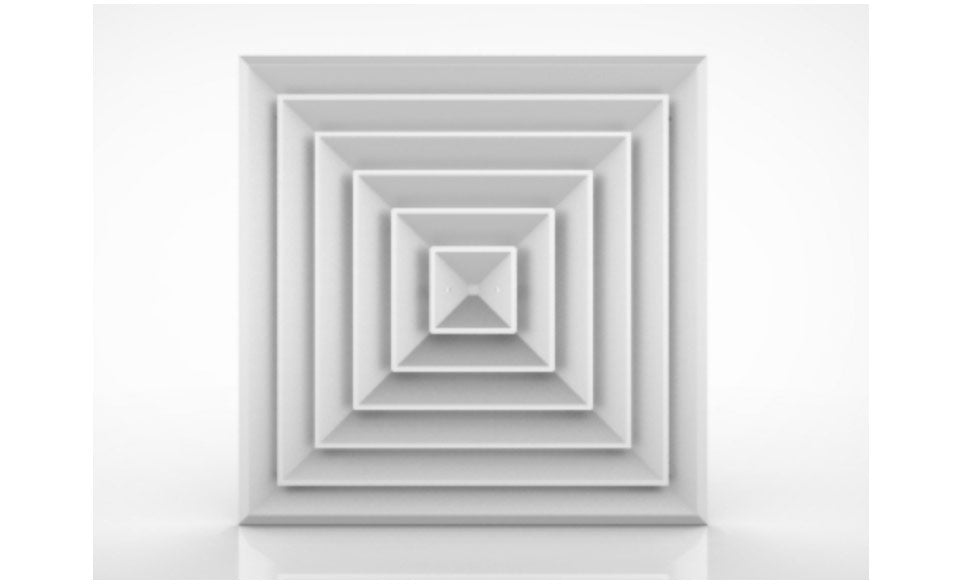

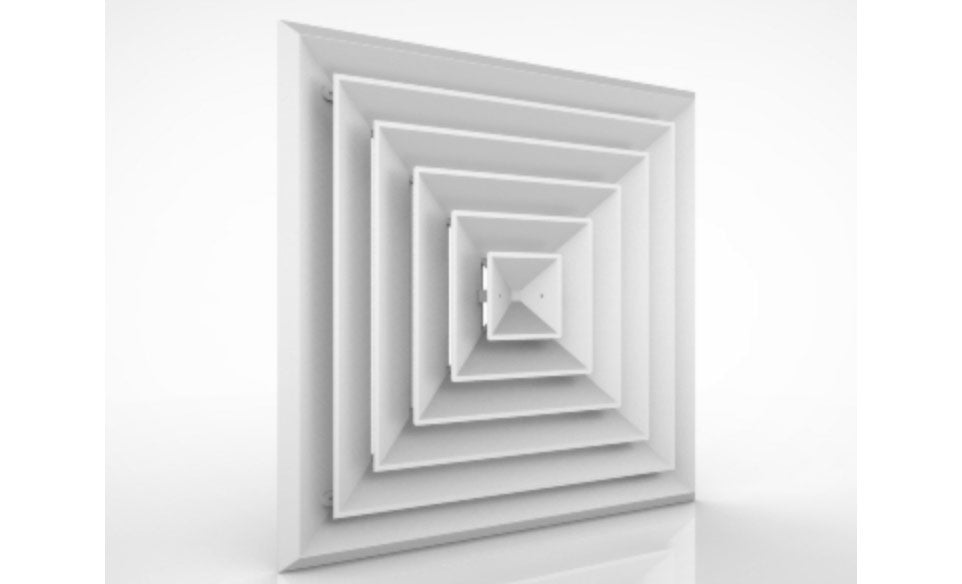

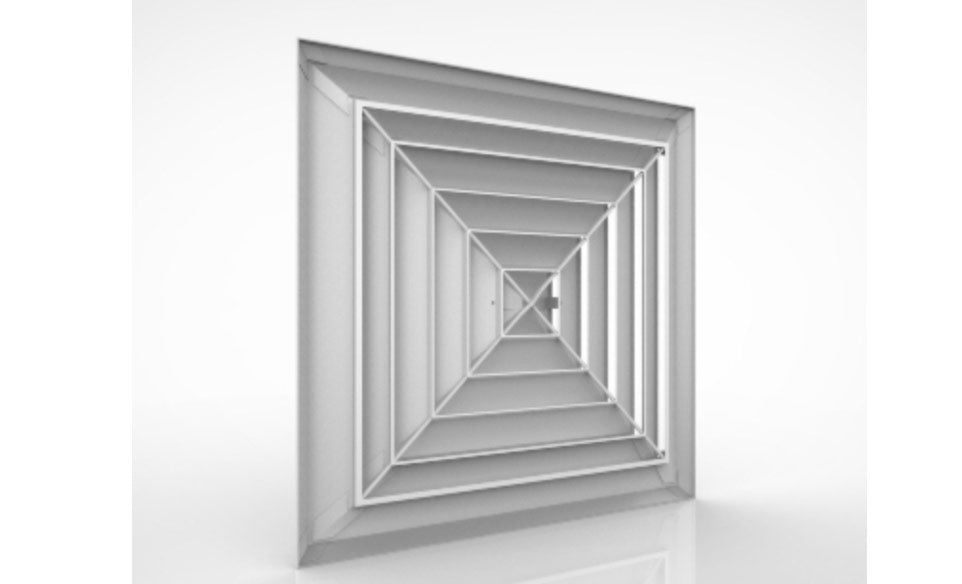

The D4P ceiling supply diffuser combines fixed 30° blades with a four-way discharge pattern and a removable core. Concealed mounting screws provide a clean appearance, while the removable core allows access during installation and maintenance. Steel and made-to-order aluminum selections are available.
Key Features:
- Air Pattern: Four-way supply airflow with fixed blades set at 30°. Contact us for one-, two-, or three-way configurations.
- Removable Core: Removable center assembly for installation and maintenance access.
- Frame Options: Flat-plane “P” and beveled “V” frame designs are available within the product family. Confirm the frame required for your installation before ordering.
- Material Options: Steel or aluminum. Aluminum is listed as made to order.
- Size Options: Current rough-opening selections, width × height, are 6” × 6”, 8” × 8”, 10” × 10”, 12” × 12”, 14” × 14”, and 24” × 24”. Confirm overall face dimensions and mounting compatibility before ordering. Contact us for custom sizes.
- Mounting and Seal: Concealed mounting screws and a foam frame seal to help prevent dust marks around the frame.
- Finish Options: Baked electrostatic polyester paint. White is the standard color; Metallic Gray and Black Matte are additional listed selections. Confirm project-specific color-match requirements before ordering.
- Availability and Lead Times: This product is not routinely stocked. Configurations are normally made to order. Made-to-order configurations have an estimated production lead time of 3–4 weeks. Shipping transit time is additional. Select your size, finish, and material to view availability for your exact configuration.
No substitutions without approval: If your selected configuration is unavailable, we may contact you with an alternative. We will not substitute the size, material, air pattern, frame configuration, or finish without your approval.
Choose the D4P for four-way ceiling air distribution with fixed-angle blades and a removable core.
