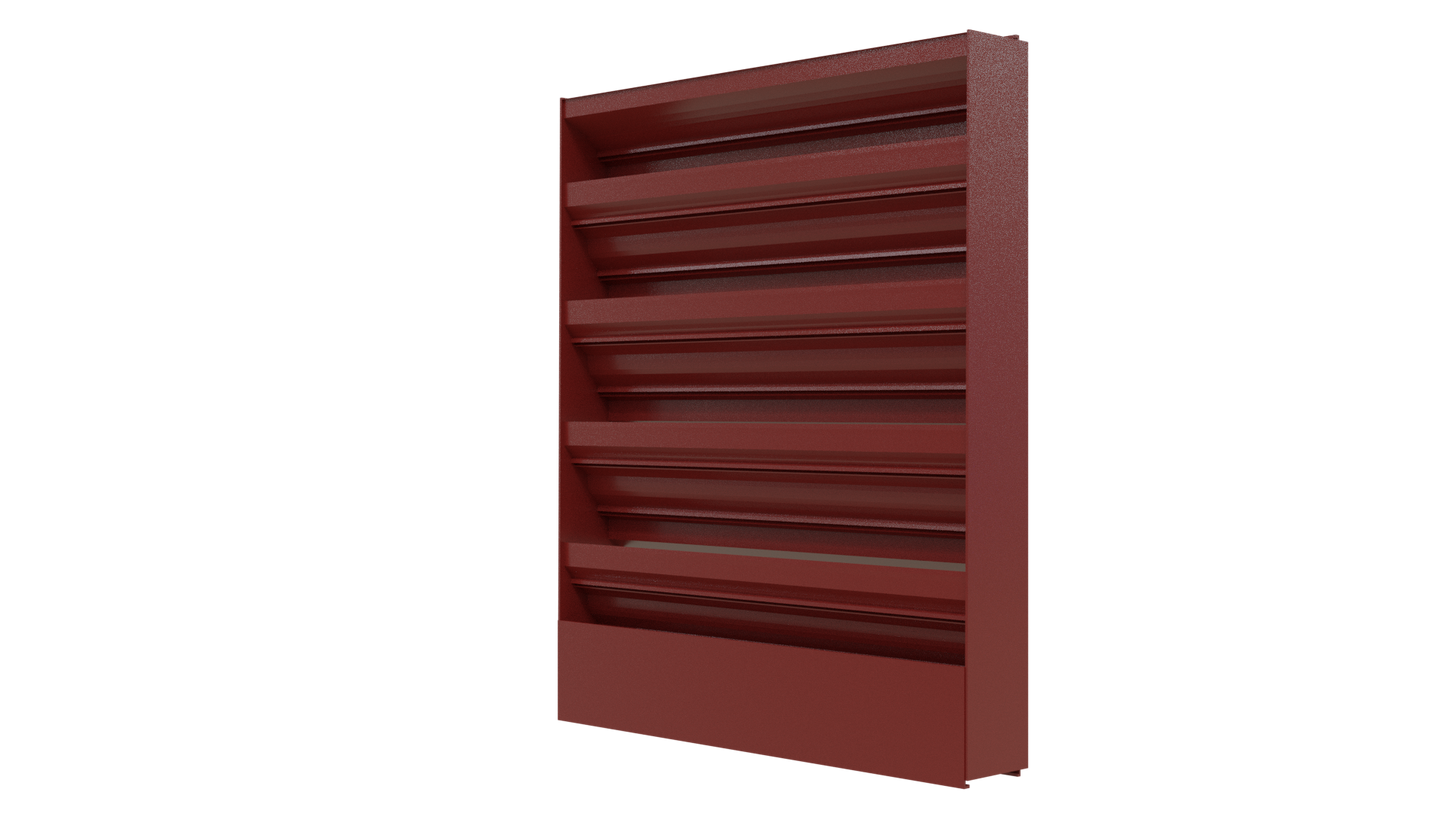

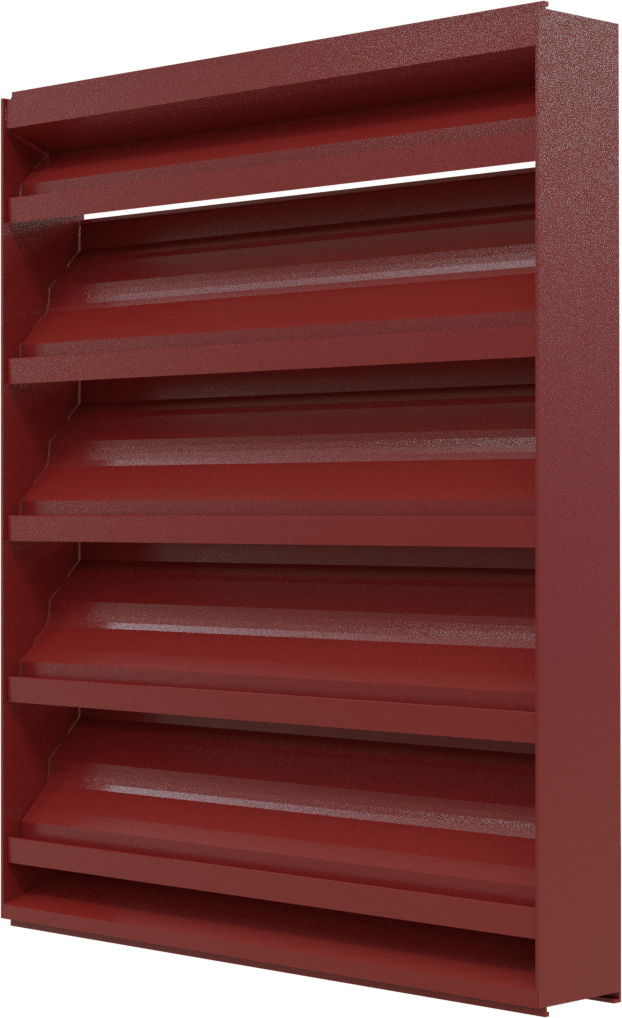

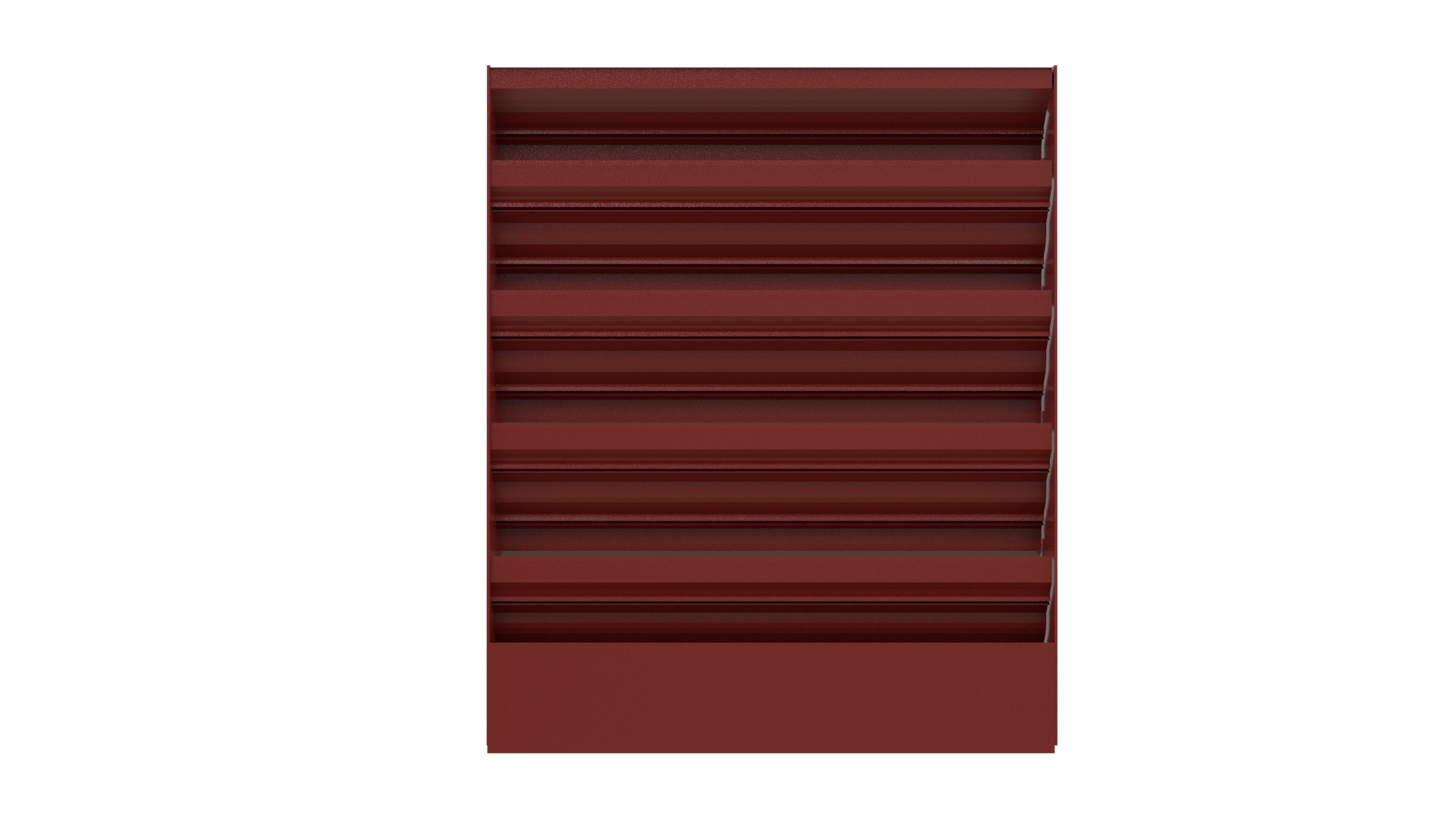

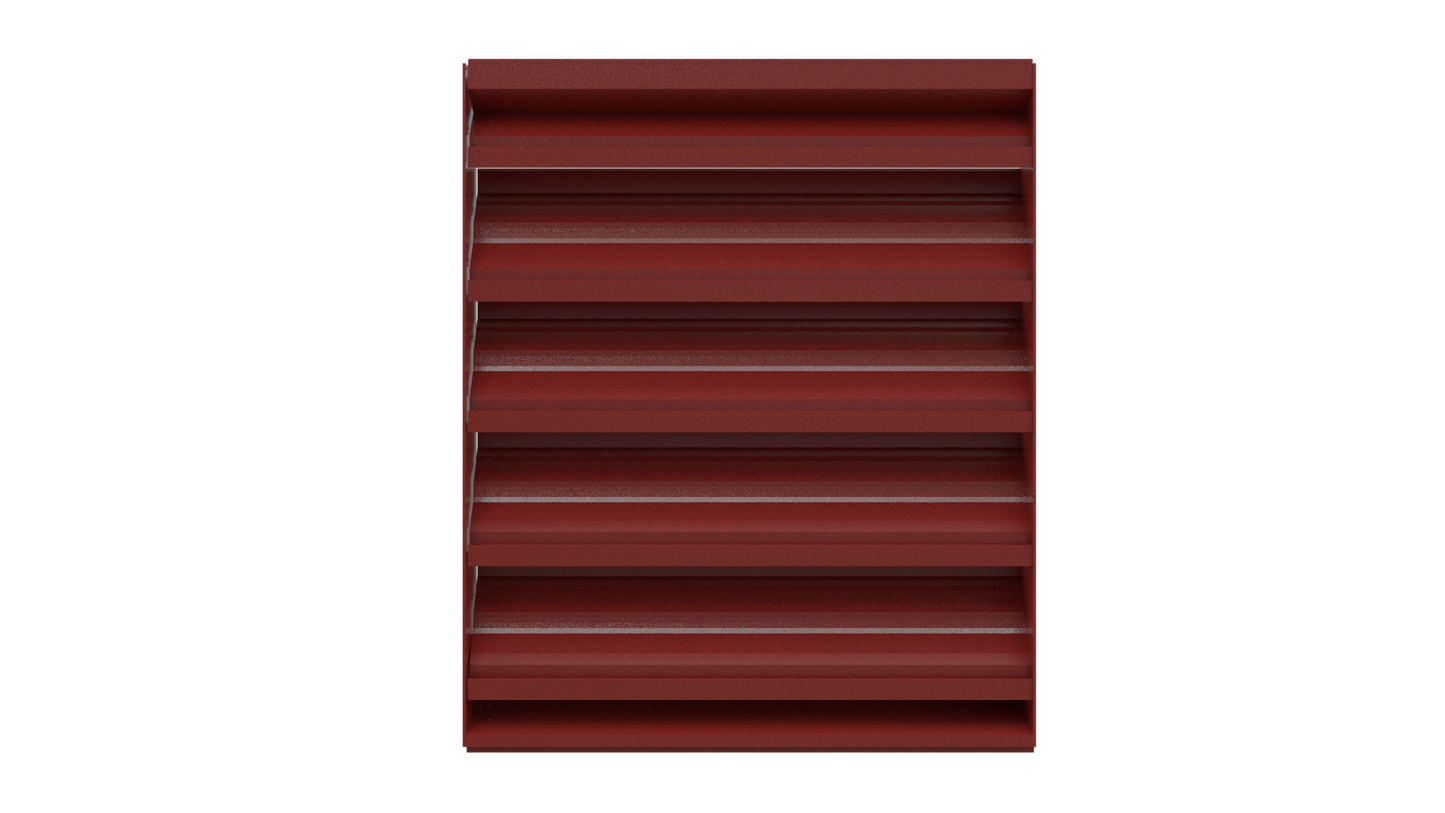

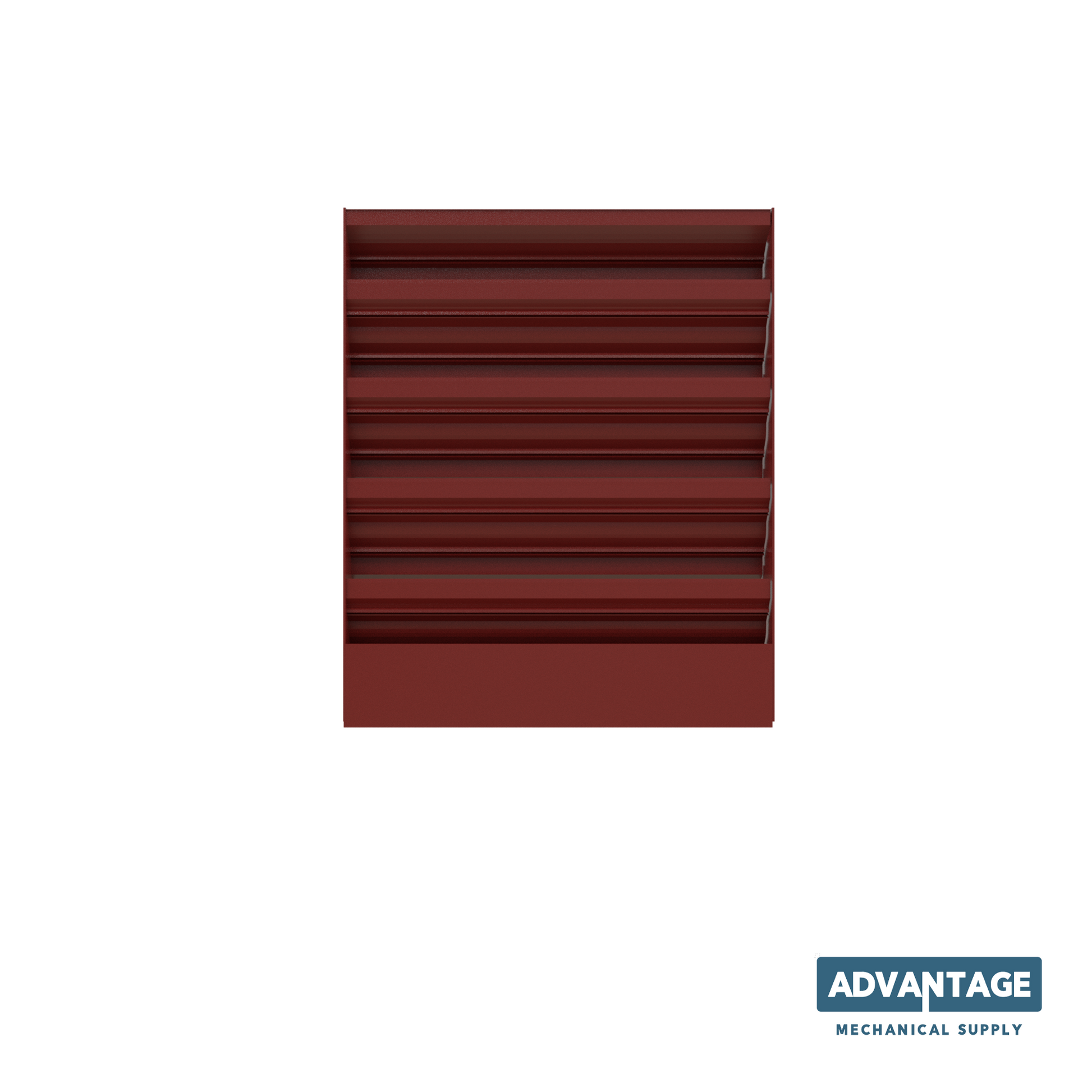

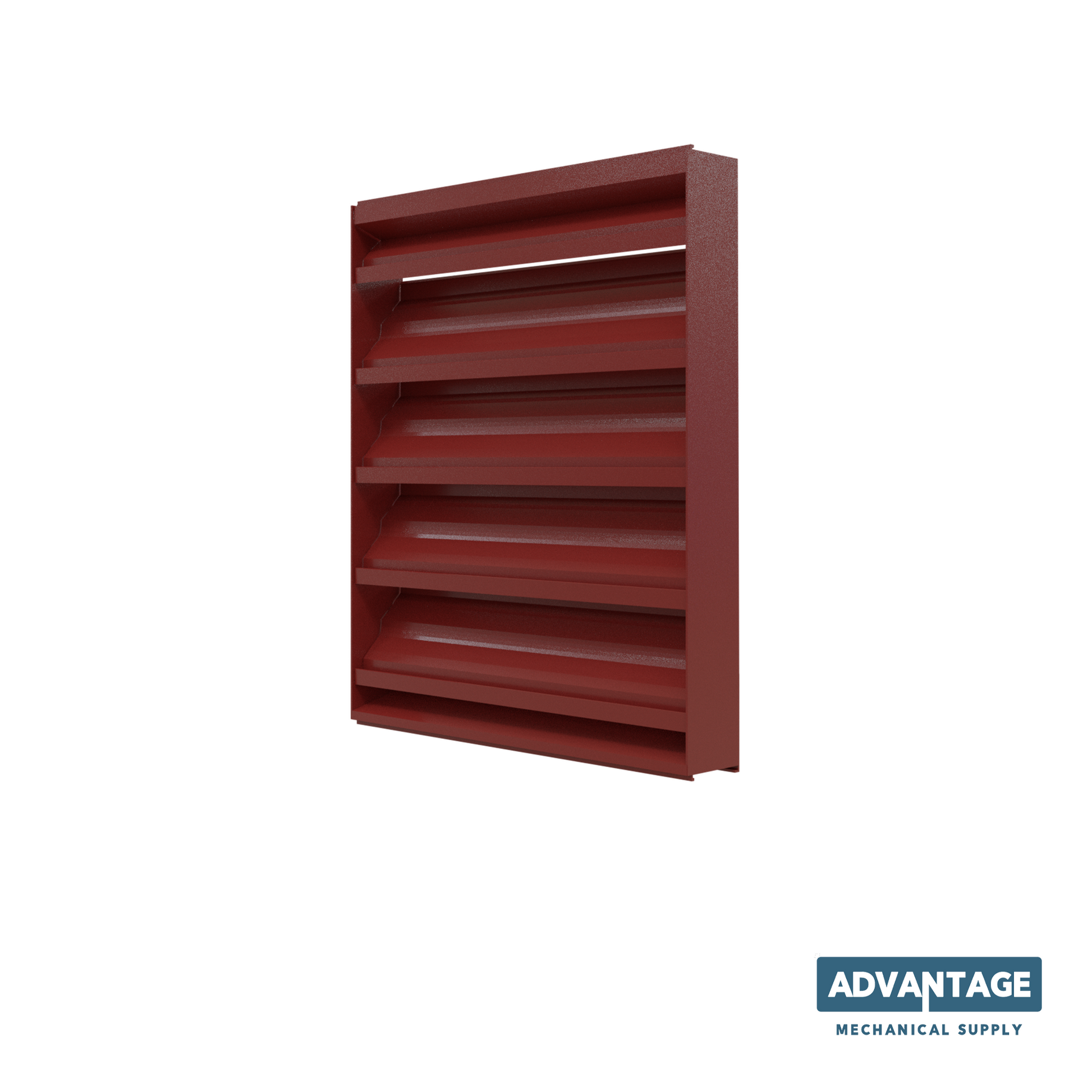

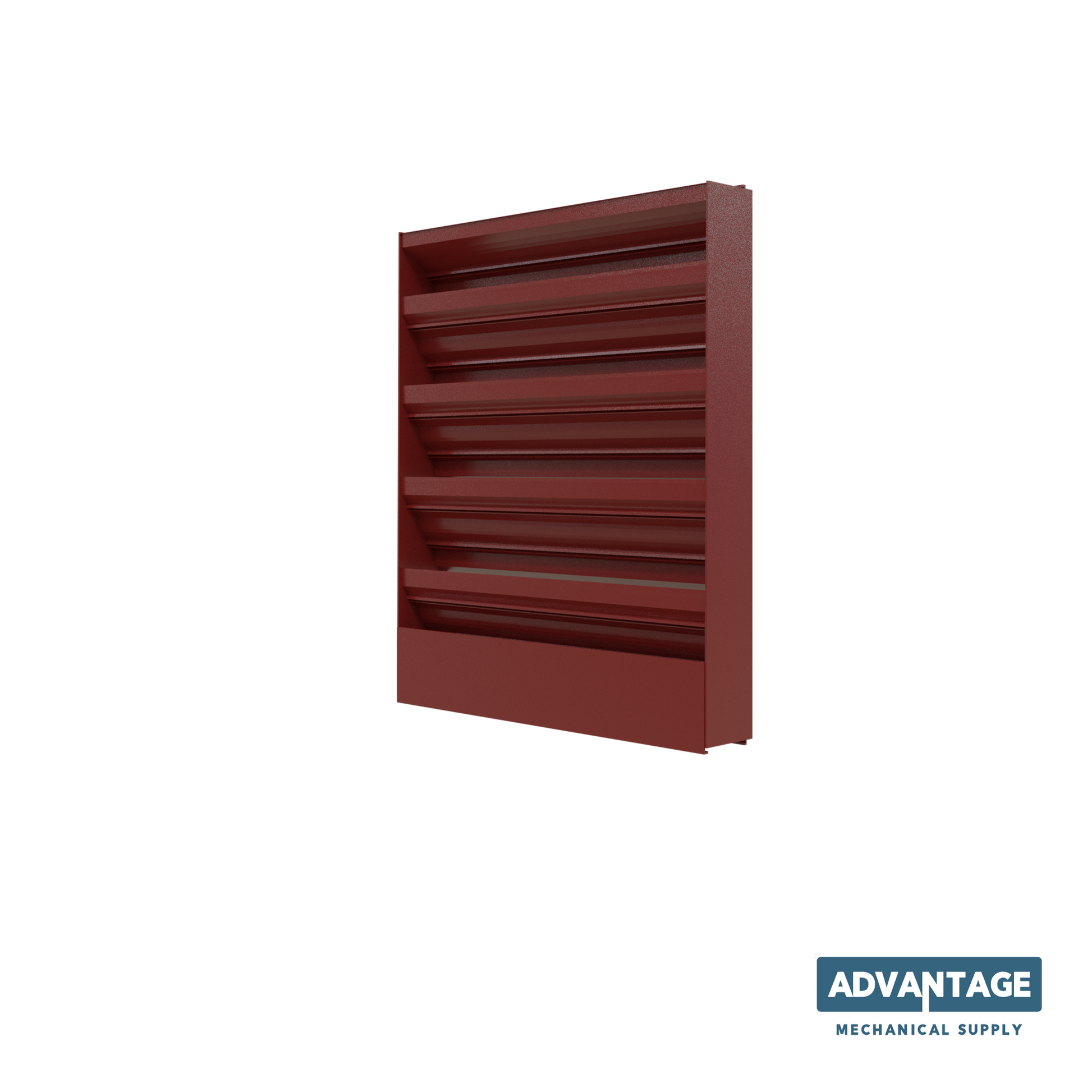

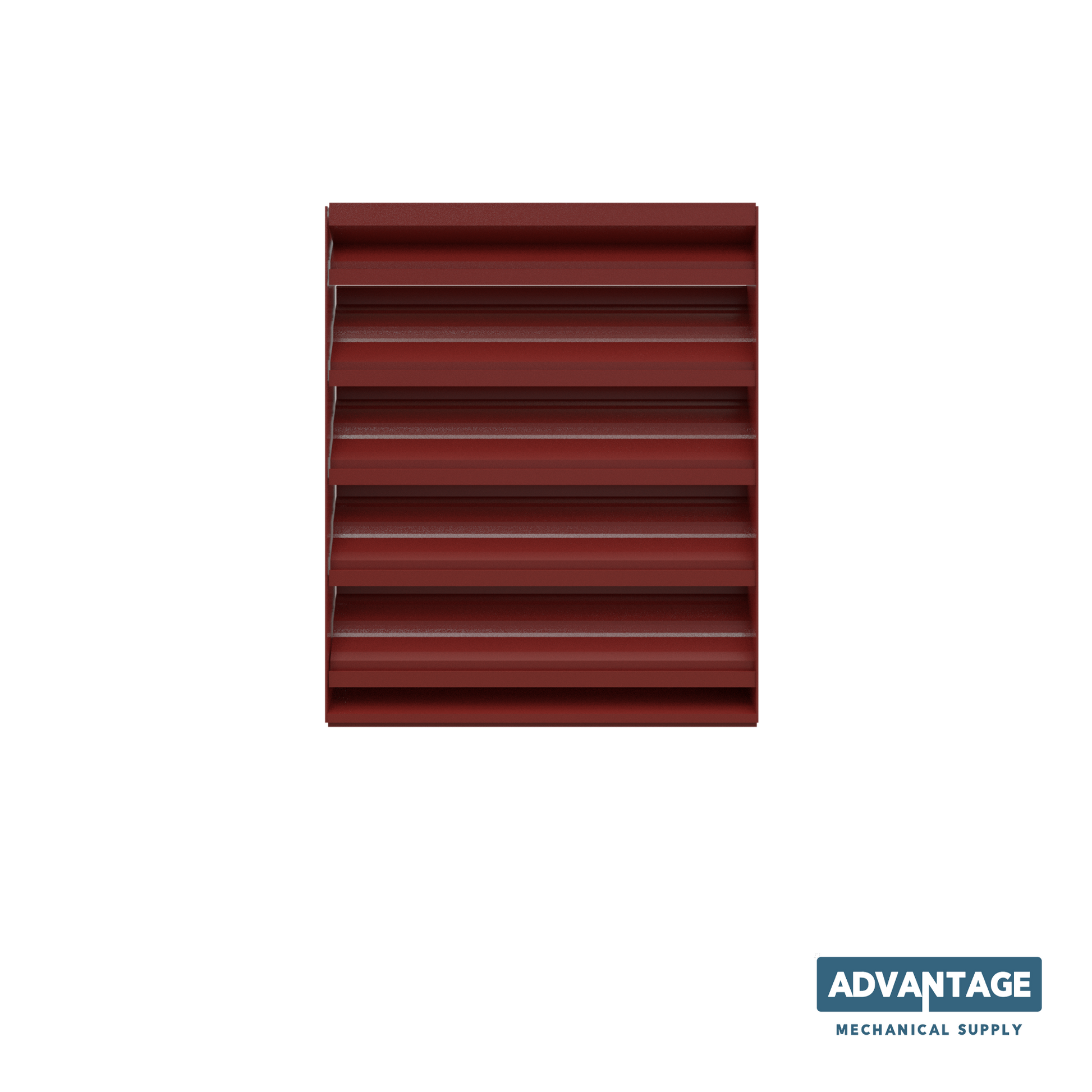

245-SD Stationary, Drainable, Louver

245-SD Stationary, Drainable, Louver

MADE TO ORDER - Lead Time 2-3 weeks

Custom Sizes Available

Click here for Submittal

The 245-SD stationary, drainable, louver is designed to prevent water penetration in building exterior
walls for non-wind-driven rain applications. Water is channeled away from the face of the louver via
built-in drain gutters into vertical downspouts that allow the water to drain at the sloped sill.

Specifications:

STANDARD CONSTRUCTION:
Material: Mill finish 6063-T5 extruded aluminum
Frame: Heavy gauge 2” deep x .081” thick
Blade: 45° drainable .081” thick – spaced 3” apart
Bird Screen: Expanded metal

SIZES:
Minimum: 6” W x 6” H
Single-Section Maximum: 60” W x 96” H
96” W x 60” H

FRAME STYLES:
Standard: Flush Box – No Flange
Optional: 1½” Bottom Flange Only or 1½” Full Perimeter Flange

OPTIONS:
Insect Screen: Front or Back
Mounting Sleeves: 8”, 10”, 12”, 14”, or 16”
