Circular Damper - COREC

Circular Damper - COREC

Eligible for Volume Discounts
Quantity
Regular price $57.10 USD
Regular price $71.30 USD Sale price $57.10 USD
Sale Sold out
Shipping calculated at checkout.

Circular Damper - COREC (CI)

Click here for SUBMITTAL

Request Other Sizes, Actuator Options, or Pricing

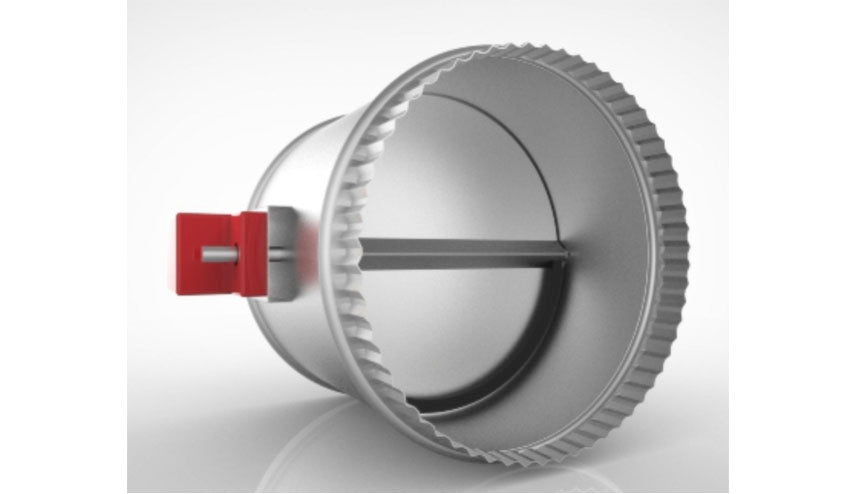

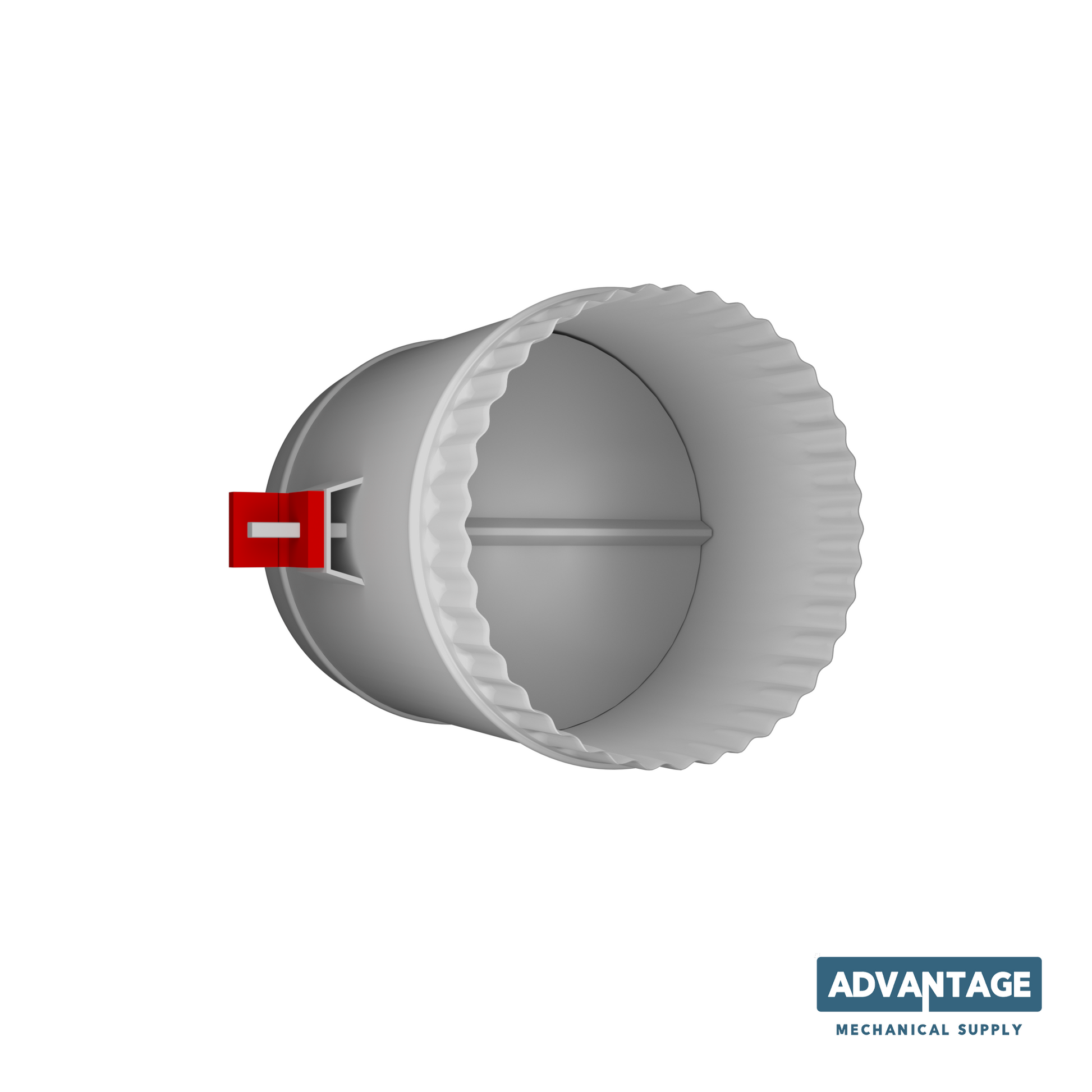

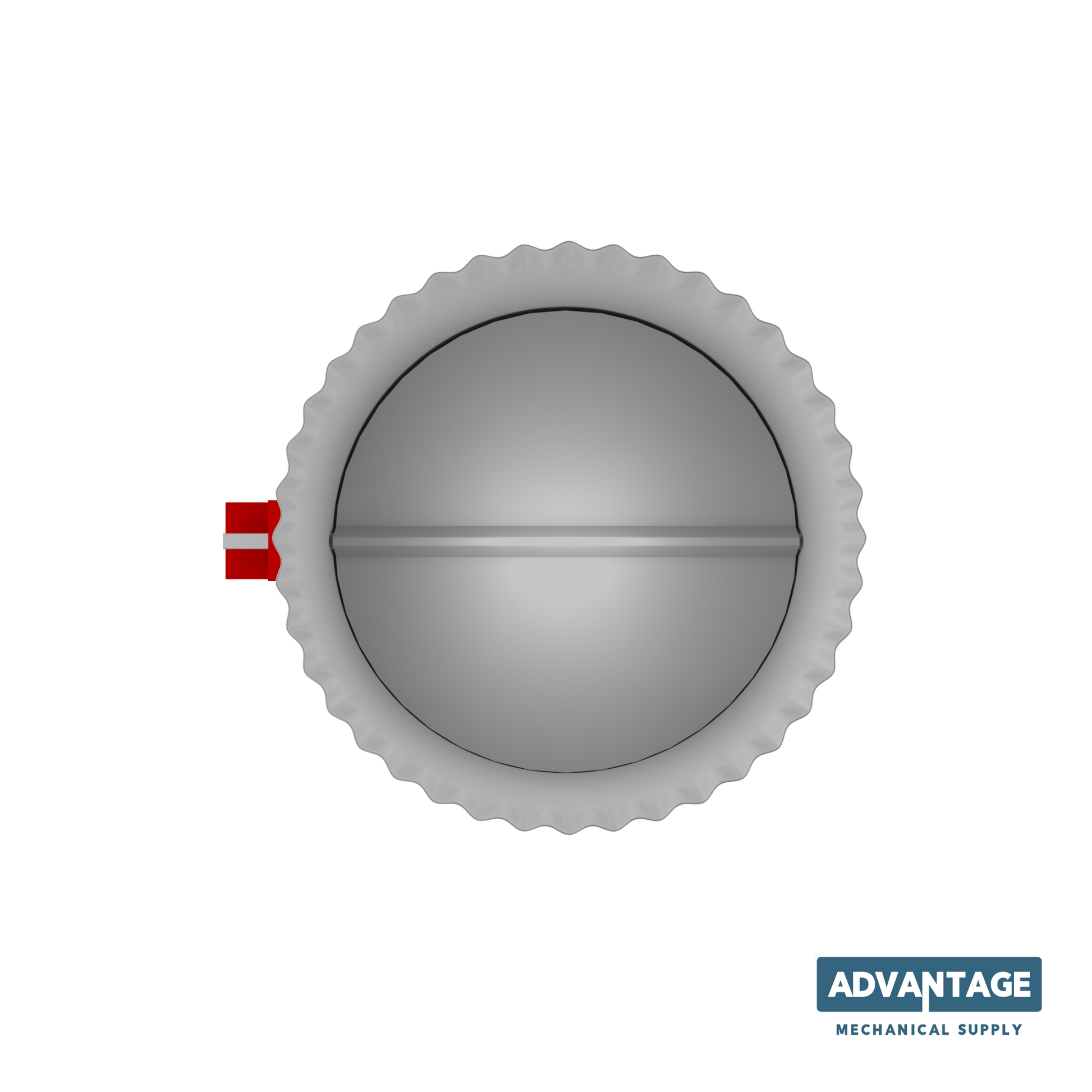

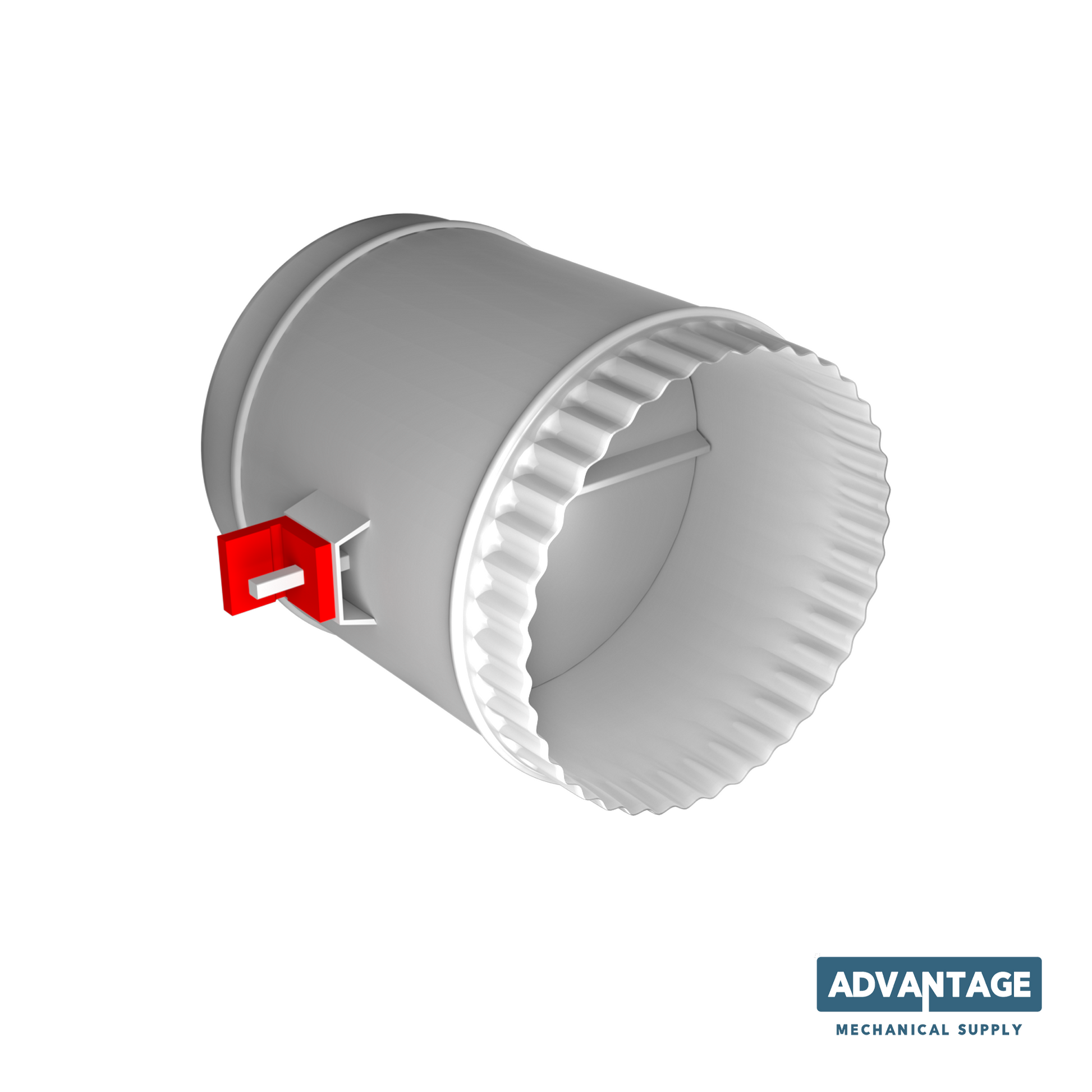

The COREC circular damper combines reinforced galvanized-steel construction with a neoprene circumferential seal for round HVAC duct airflow control. An optional electric actuator can be supplied assembled when specified, allowing you to match the damper configuration to your installation requirements.

Key Features:

  • Damper Design: Reinforced circular damper with a neoprene circumferential seal to help reduce leakage when closed.
  • Material and Gauge: Galvanized sheet steel in 22 gauge for 6”–20” diameters and 20 gauge for 22”–36” diameters. Contact us to confirm construction for the 4” selection or other custom sizes.
  • Shaft: ½” diameter rod/shaft.
  • Actuator Option: The electric actuator shown is optional, not included as standard. Contact us to specify an assembled actuator and confirm requirements before ordering.
  • Size Options: Current diameter selections are 4”, 6”, 8”, 10”, 12”, 14”, 16”, 18”, and 20”. Contact us for larger diameters or custom sizes.
  • Finish: Natural galvanized steel, unpainted.
  • Packaging: Sealed plastic packaging.
  • Availability and Lead Times: This product is not routinely stocked and is supplied on a made-to-order basis. Made-to-order configurations have an estimated production lead time of 2–3 weeks. Shipping transit time is additional. Contact us to confirm pricing and your exact configuration.

No substitutions without approval: We will not substitute the selected diameter, material, gauge, finish, or agreed actuator configuration without your approval.

Match COREC to your round duct installation with reinforced construction and a circumferential neoprene seal.
