Circular Butterfly Damper - CVM (CM)
Request Other Sizes or Configurations

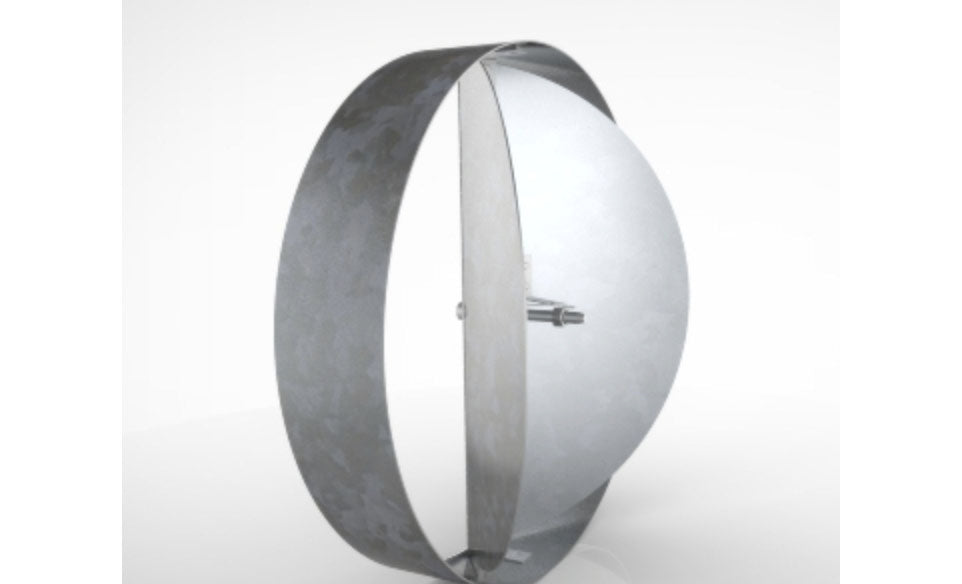

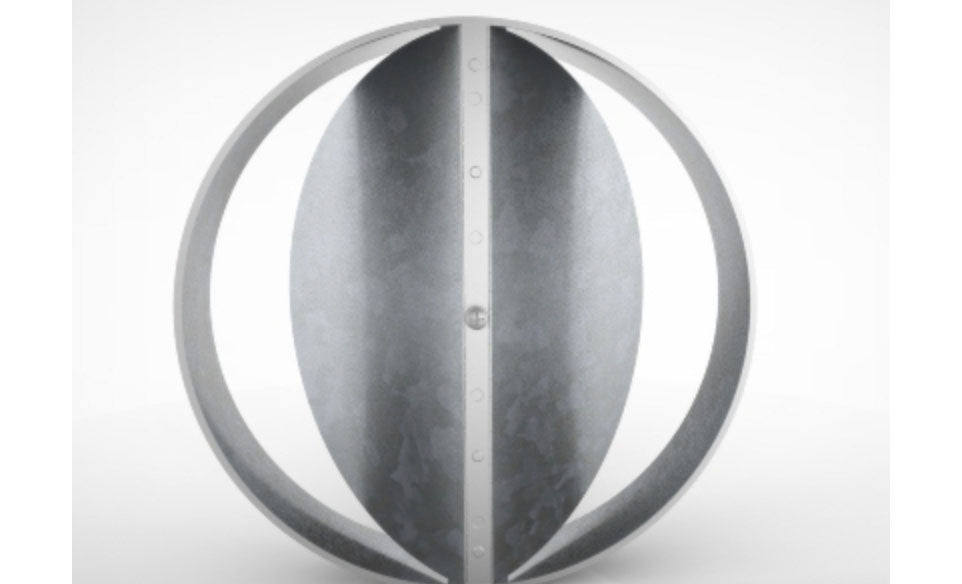

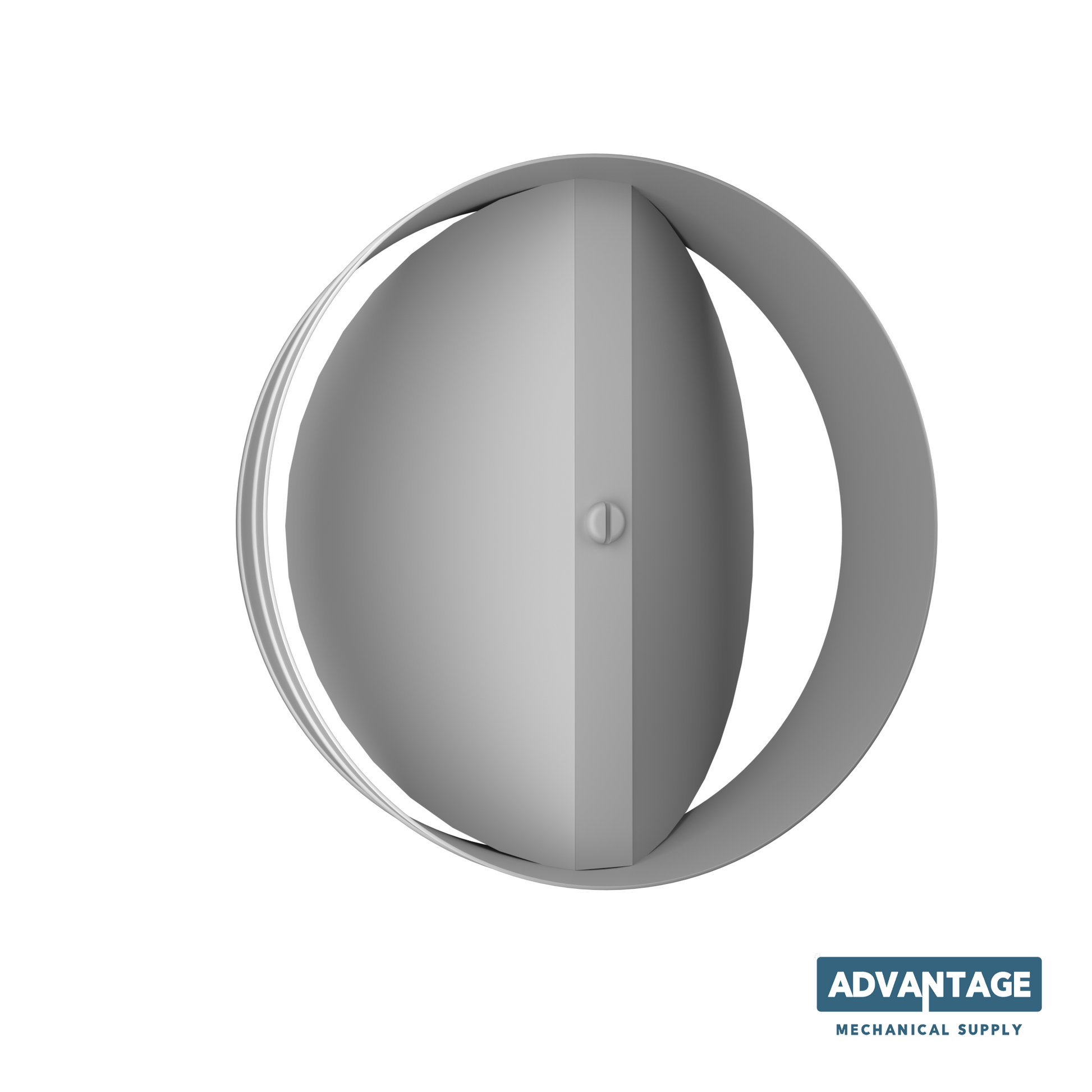

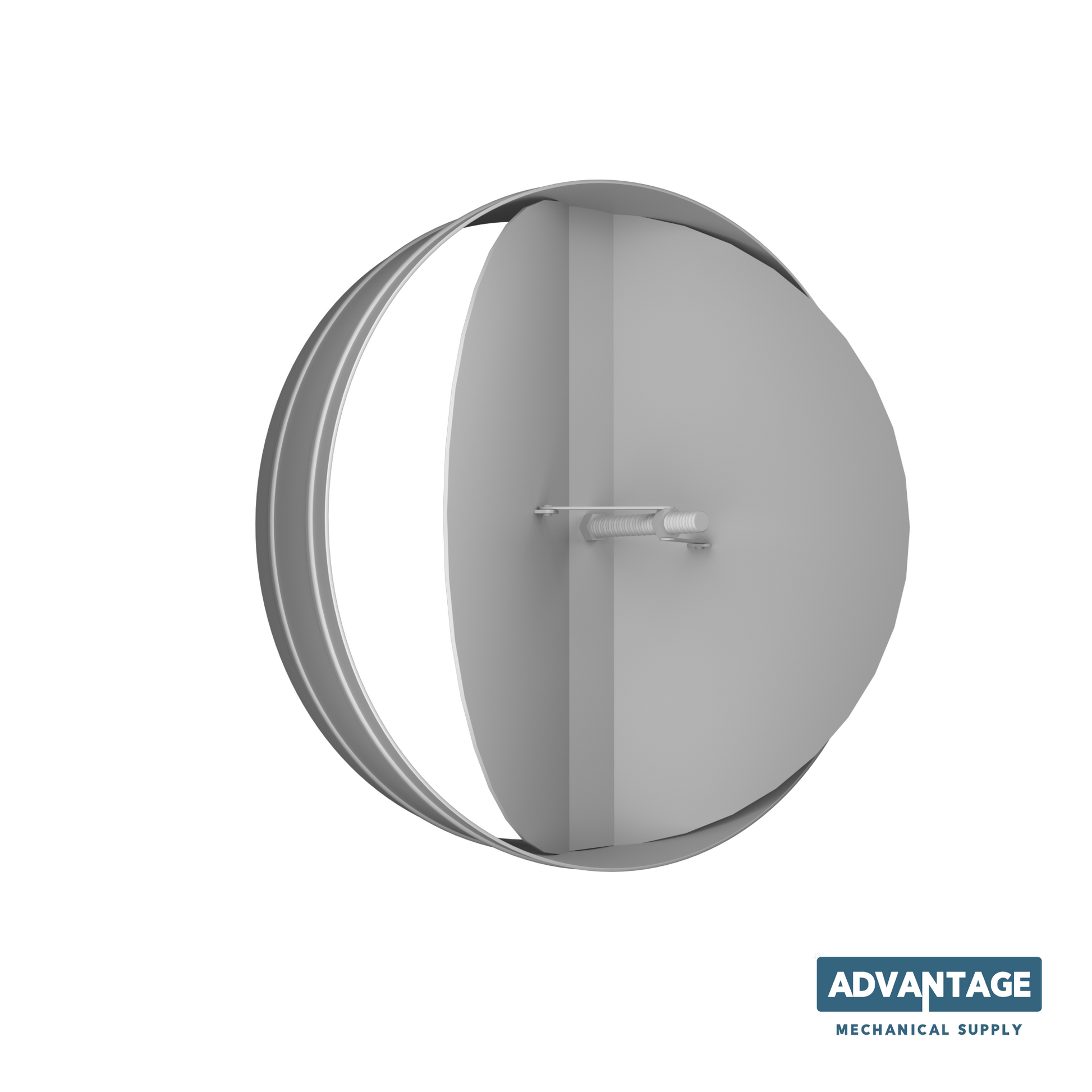

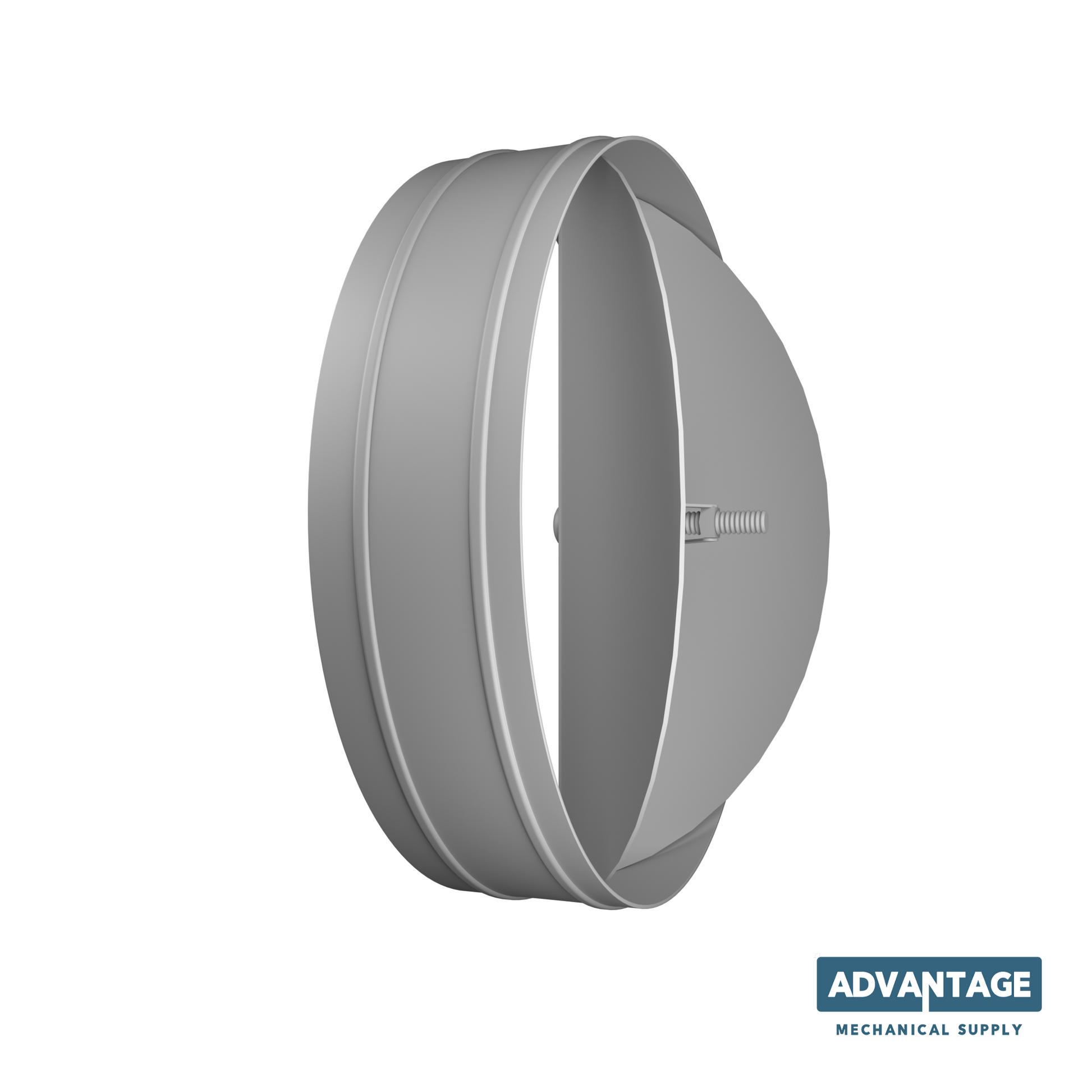

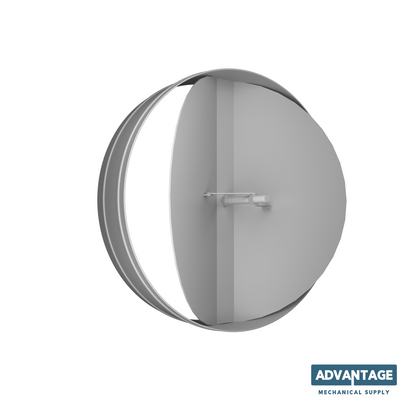

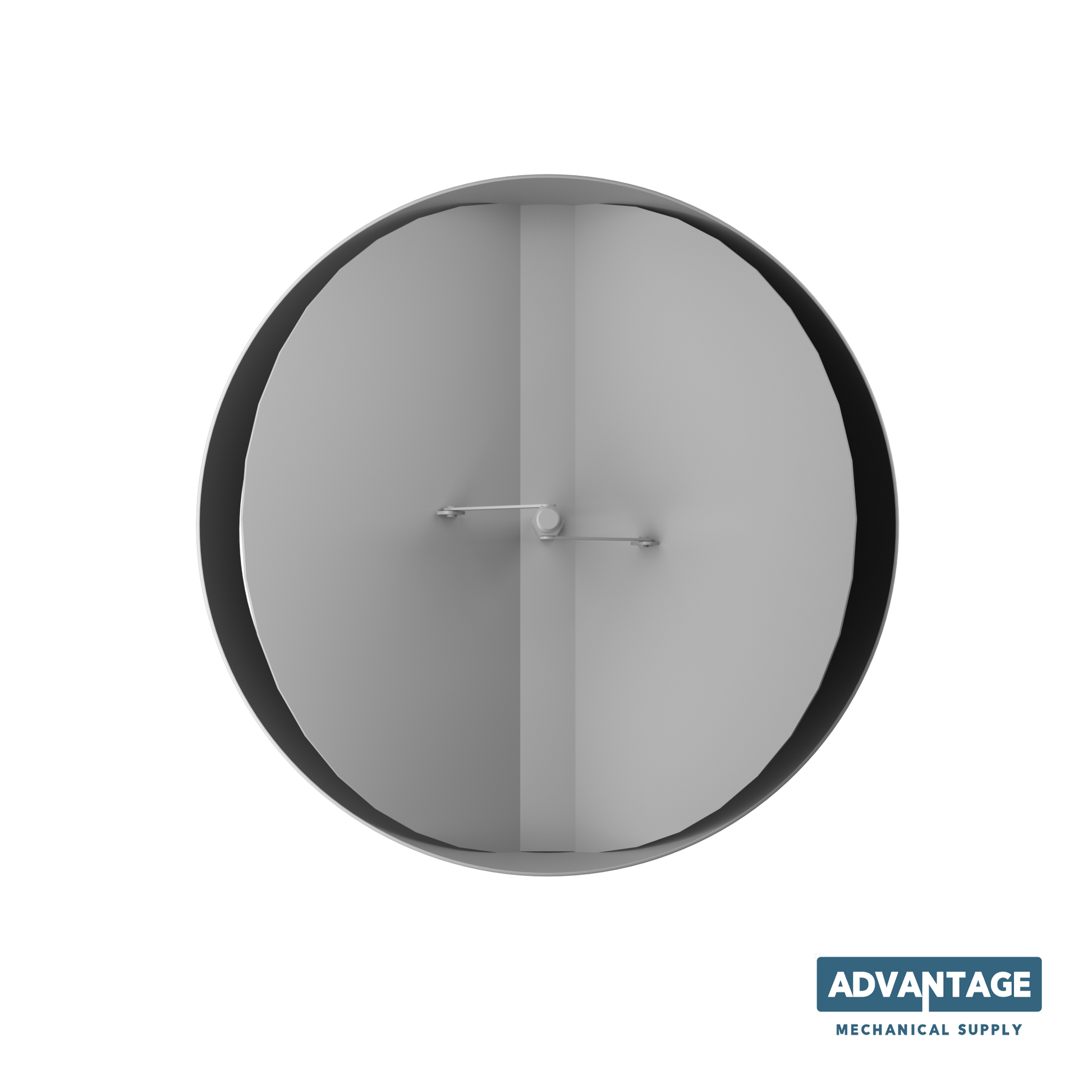

The CVM circular butterfly damper provides manual volume control with two opposing fins that open and close simultaneously. A central screw, operated with a screwdriver, adjusts the fins to regulate airflow. Natural galvanized-steel construction suits round HVAC airflow-control installations.
Key Features:
- Butterfly Operation: Two opposing fins move together to adjust air volume.
- Manual Adjustment: Central screw operated with a screwdriver.
- Material and Gauge: Natural galvanized sheet steel in 26 gauge for 4”–20” diameters and 24 gauge for 22” and 24” diameters.
- Size Options: Model diameters range from 4” to 24”. Current selections are 4”, 6”, 8”, 10”, 12”, 14”, 16”, 20”, and 24”. Contact us for other sizes or custom requirements.
- Installation Dimensions: Actual outside diameter is ¼” smaller than the listed diameter. Body depth is 3”. Confirm fit with your mating component before ordering.
- Finish: Natural galvanized steel, unpainted.
- Availability and Lead Times: This product is not routinely stocked. Configurations are normally made to order, although limited quantities may occasionally be available from stock. Made-to-order configurations have an estimated production lead time of 2–3 weeks. Shipping transit time is additional. Select your size to view availability for your exact configuration.
No substitutions without approval: If your selected configuration is unavailable, we may contact you with a compatible alternative. We will not substitute the diameter, material, gauge, or finish without your approval.
Choose the CVM for screwdriver-operated butterfly volume control in your round HVAC installation.
