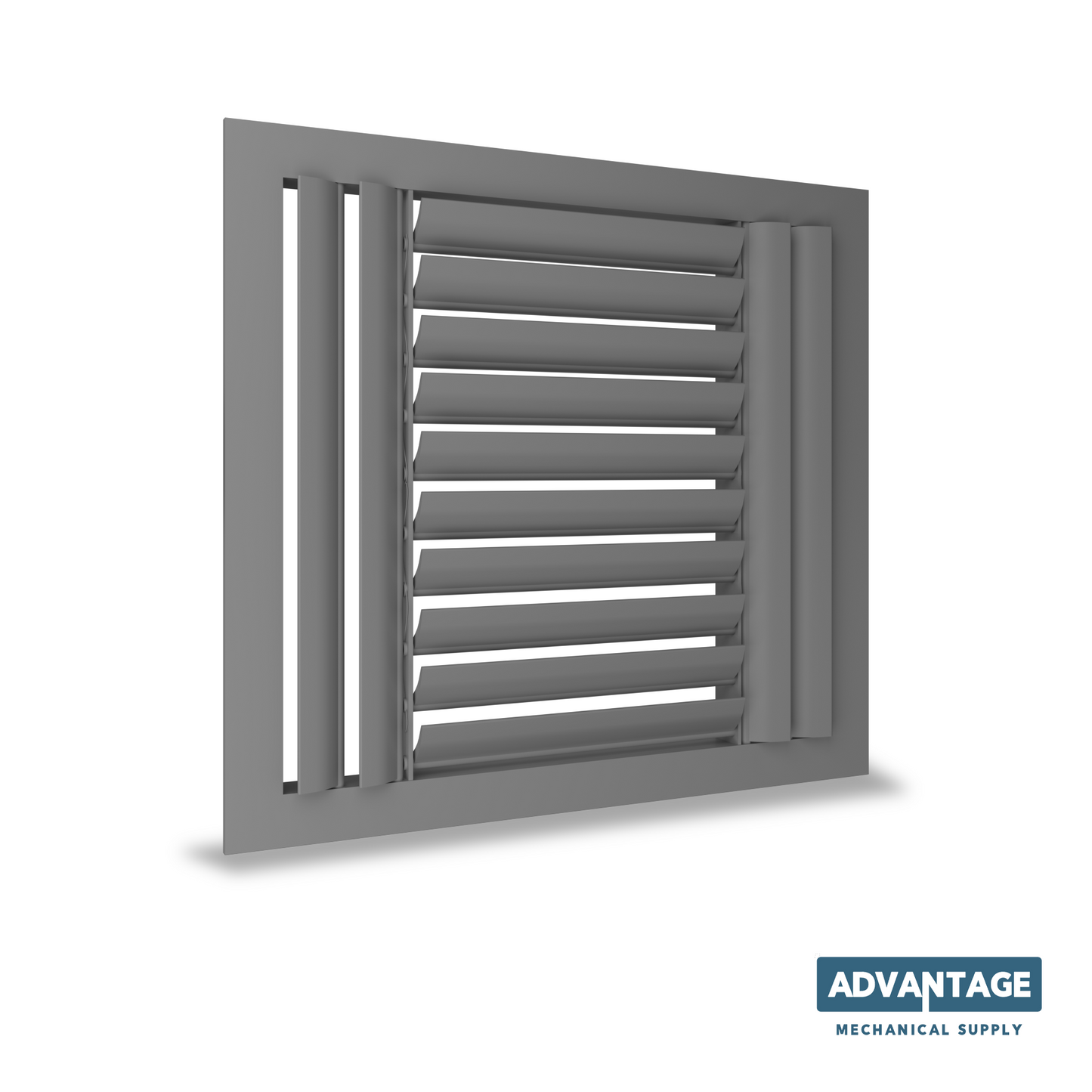

3-Way Steel Deflection Diffuser - DA3

3-Way Steel Deflection Diffuser - DA3

Eligible for Volume Discounts
Quantity
Regular price $27.10 USD
Regular price $33.80 USD Sale price $27.10 USD
Sale Sold out
Shipping calculated at checkout.

3-Way Steel Deflection Diffuser - DA3 (A3A)

Click here for SUBMITTAL

Request Other Sizes or Configurations

The DA3 three-way deflection diffuser provides adjustable supply-air direction through individually adjustable curved blades. Blades spaced 1” apart can be positioned without a special tool, allowing the discharge pattern to be adapted to your installation. Steel and aluminum selections are available in the same design.

Key Features:

  • Air Pattern: Three-way supply-air deflection with individually adjustable curved blades.
  • Blade Adjustment: 1” blade spacing with individual adjustment without a special tool.
  • Material Options: Steel or tempered aluminum. Tempered galvanized-steel wire is used in the blade axes to help reduce noise and vibration.
  • Size Options: Current rough-opening selections, width × height, are 6” × 6”, 8” × 8”, 10” × 10”, 12” × 12”, 14” × 14”, 16” × 16”, 20” × 20”, 21” × 21”, and 24” × 24”. Contact us for other sizes or custom requirements. Confirm overall face dimensions and mounting fit before ordering.
  • Frame Seal: Foam seal around the frame helps prevent dust marks.

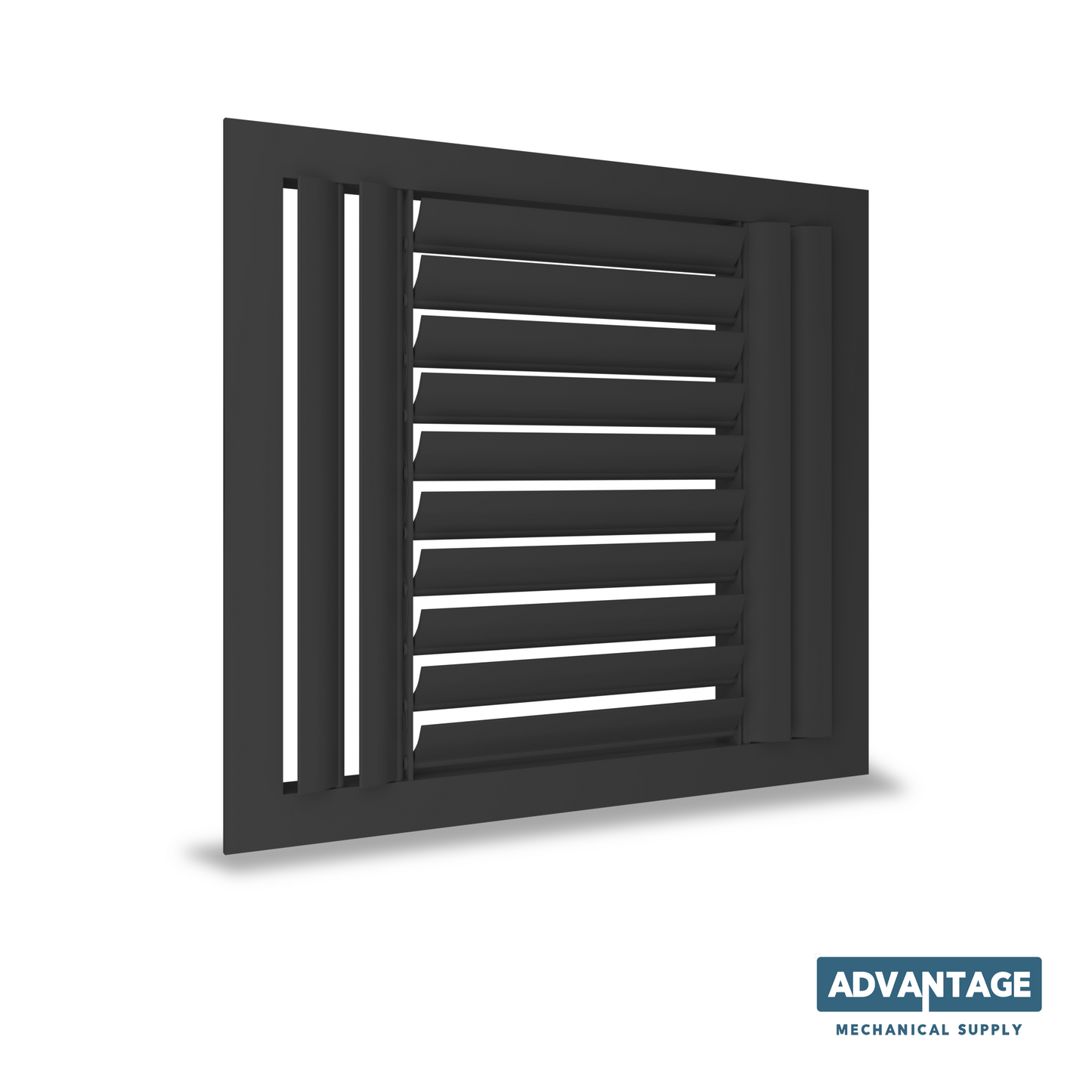

  • Finish Options: Baked electrostatic polyester paint. White is the standard color; Metallic Gray and Black Matte are additional listed selections. Confirm project-specific color-match requirements before ordering.
  • Availability and Lead Times: This product is not routinely stocked. Configurations are normally made to order. Made-to-order configurations have an estimated production lead time of 3–4 weeks. Shipping transit time is additional. Select your size, finish, and material to view availability for your exact configuration.

No substitutions without approval: If your selected configuration is unavailable, we may contact you with an alternative. We will not substitute the size, material, air pattern, or finish without your approval.

Choose the DA3 for three-way supply airflow with individually adjustable curved blades.
