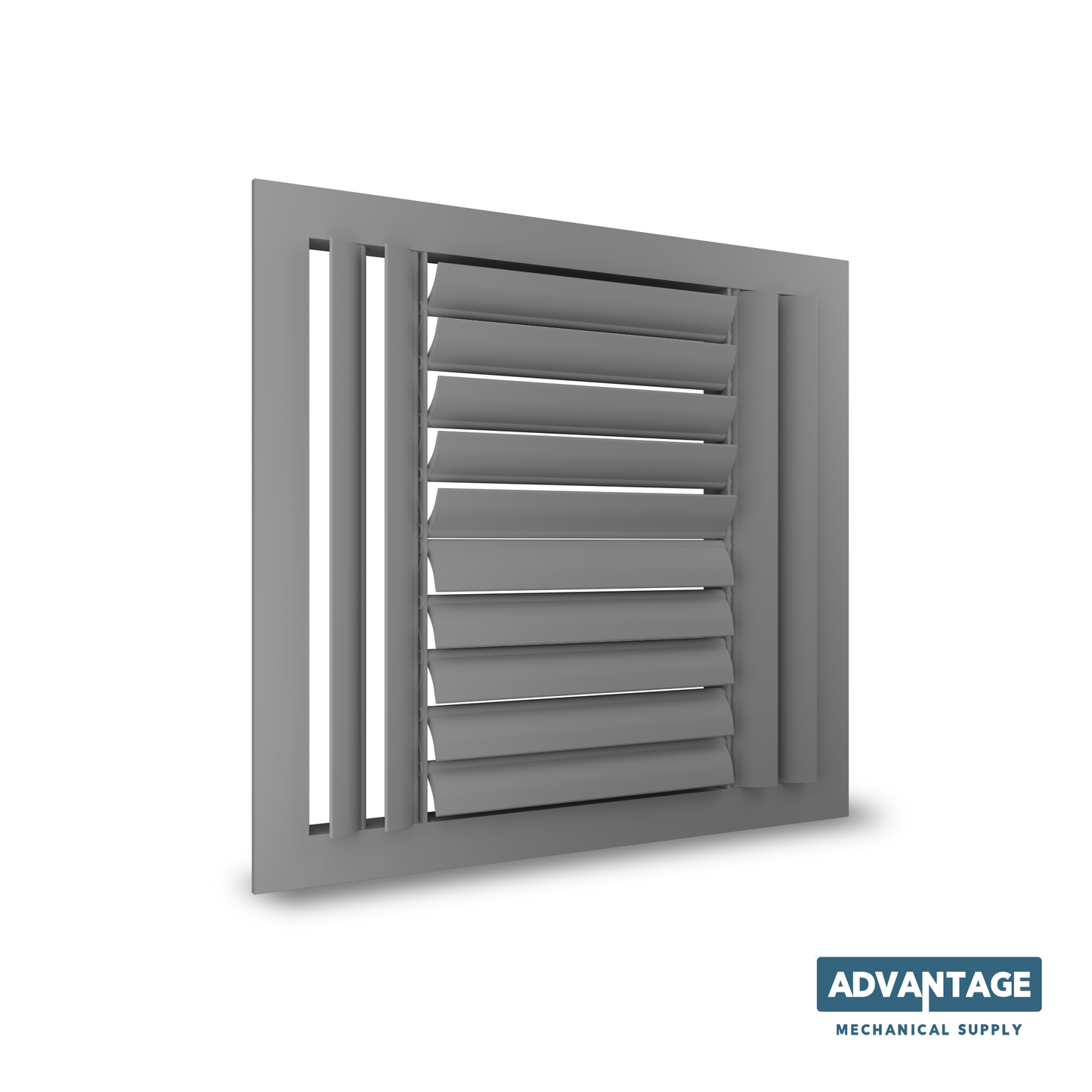

4-way Deflection Diffuser - DA4

4-way Deflection Diffuser - DA4 (A4A)

CLICK HERE FOR SUBMITTAL

DESCRIPTION:

4-way deflection diffuser, blades at 1” of separation and easy individual adjust. (without the need of a special tool)

Standard in Steel but also available in aluminum (contact us)

Optional patterns: 3, 2 and 1-way deflection. The adjustable diffusers have a great advantage to adjust its air injection pattern, adapting easily to any kind of installation. Curved blades provoke a very small pressure loss and are more silent.

MATERIALS:

Our aluminum profiles are made with tempered for strength and are manufactured with the same design as steel.

Tempered galvanized steel wire is used in the blade axis to avoid noise and vibration.

FINISH:

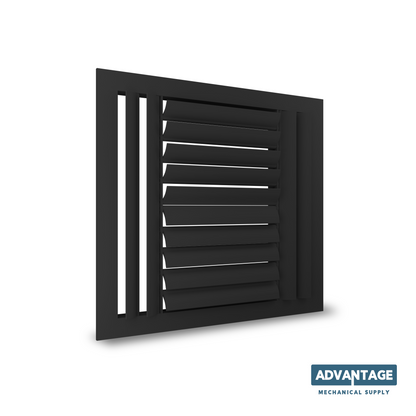

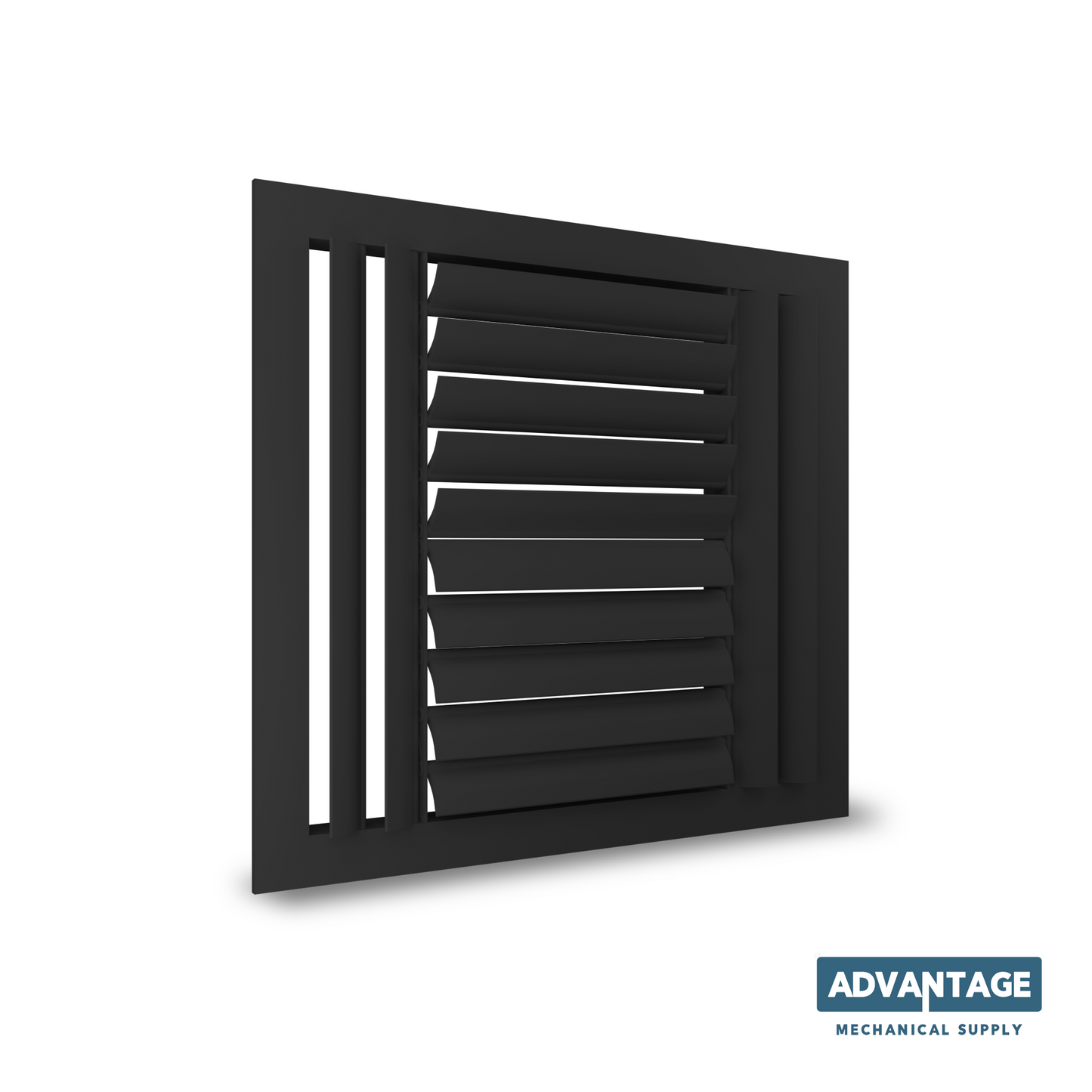

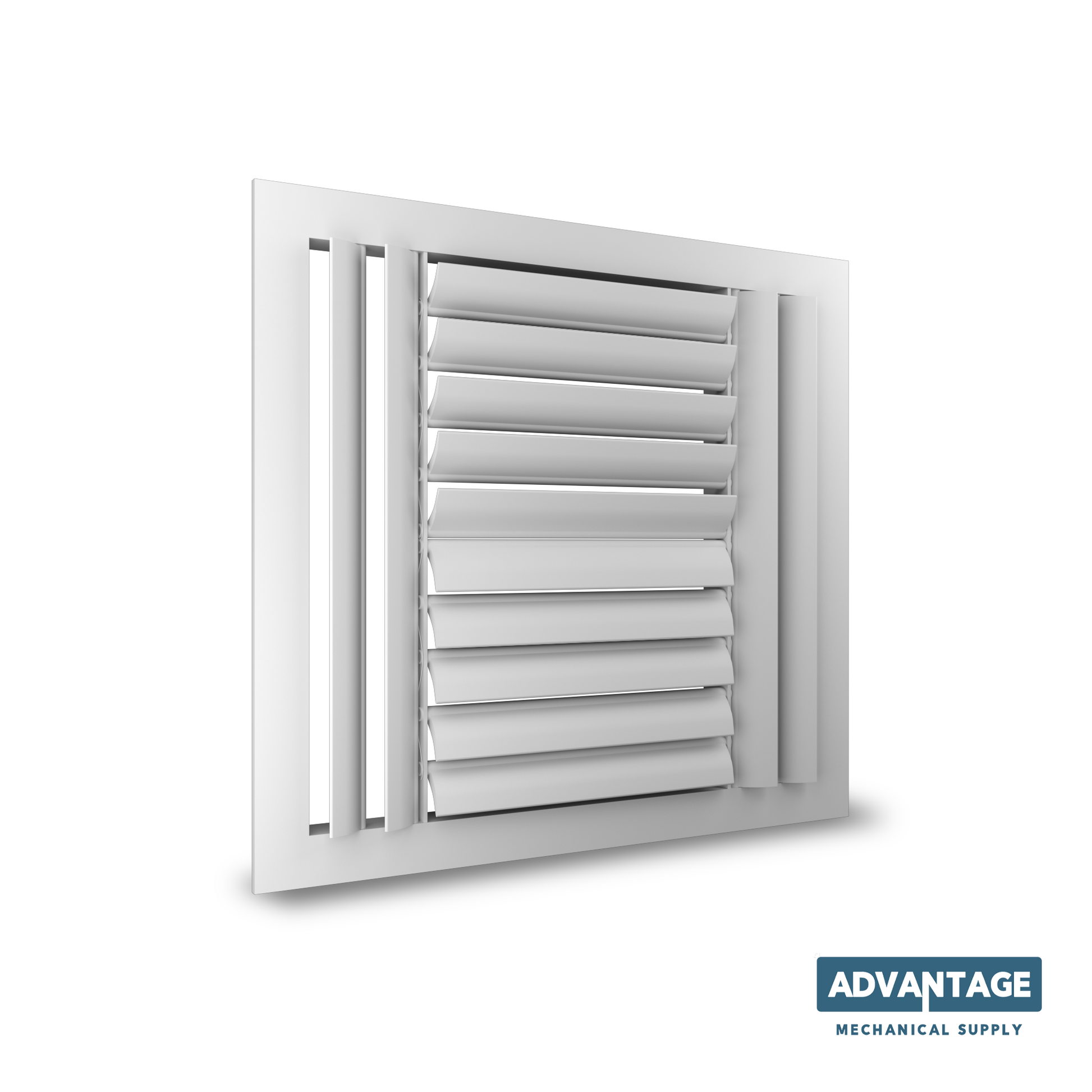

Baked electrostatic paint (polyester) white as standard finish with optional gray and matte black aluminum, free extra foam seal on the frame to prevent dust spots, airtight plastic packaging for fixing screws.
