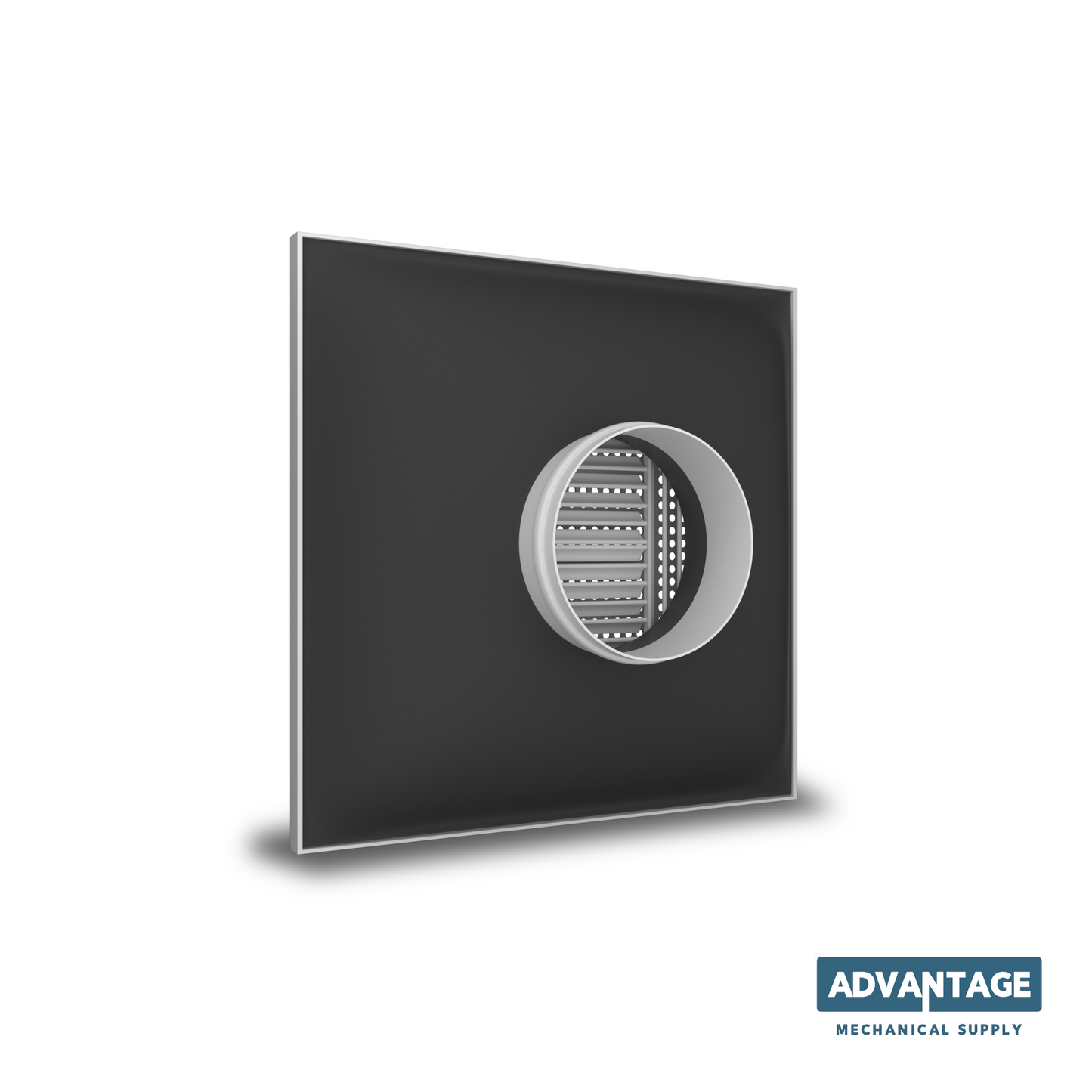

Ceiling Lay-In Mesh Face Diffuser 24X24 with Insulation - DPE

Ceiling Lay-In Mesh Face Diffuser 24X24 with Insulation - DPE

Eligible for Volume Discounts
Quantity
Regular price $98.50 USD
Regular price $0.00 USD Sale price $98.50 USD
Sale Sold out
Shipping calculated at checkout.

Ceiling Lay-In Mesh Face Diffuser 24X24 with Insulation - DPE (Old DPA)

Click here for SUBMITTAL

Click here for Performance Tables

Request Other Sizes or Colors

The DPE insulated mesh face diffuser is designed for 24” × 24” lay-in ceiling systems. Its perforated face provides 50% free area and is removable for maintenance, while the insulated distribution box and round neck allow connection to flexible ductwork.

Key Features:

  • Lay-In Design: A 24” × 24” face integrates into modular ceiling grids.
  • Removable Mesh Face: Hinged perforated steel face with 50% free area provides access for maintenance.
  • Steel Construction: The steel model uses a 26-gauge perforated face, with a 24-gauge face option, a reinforced 26-gauge steel adapter box, and rolled and stamped 26-gauge galvanized necks. Aluminum configurations are also available.
  • Insulation: Kraft-coated fiberglass insulation, 1-1/2” thick, with an R-value of 4.2.
  • Neck Sizes: Available in 6”, 8”, 10”, 12”, and 14” for flexible duct connection.
  • Finish Options: Baked electrostatic polyester paint in standard White, with Metallic Gray and Matte Black options.
  • Availability and Lead Times: Availability varies by neck size, material, and finish. Select White configurations are routinely stocked; not every size or material combination is a stocked item. Nonstandard configurations may occasionally be available from stock. Configurations not available from stock are supplied on a made-to-order basis. Made-to-order configurations have an estimated production lead time of 3–4 weeks. Shipping transit time is additional. Select all options to view availability for your exact configuration.

No substitutions without approval: If your selected configuration is unavailable, we may contact you with a compatible alternative. We will not substitute the neck size, material, or finish without your approval.

Choose the DPE diffuser for an insulated lay-in ceiling installation with a removable mesh face for maintenance access.
