Louver with Adjustable Deflection Blades - LA4A

Louver with Adjustable Deflection Blades - LA4A

Eligible for Volume Discounts
Quantity
Regular price $125.60 USD
Regular price $156.90 USD Sale price $125.60 USD
Sale Sold out
Shipping calculated at checkout.

Louver with Adjustable Deflection Blades - LA4A (LMA)

Click here for SUBMITTAL

Click here for PERFORMANCE TABLES

Request Other Sizes or Configurations

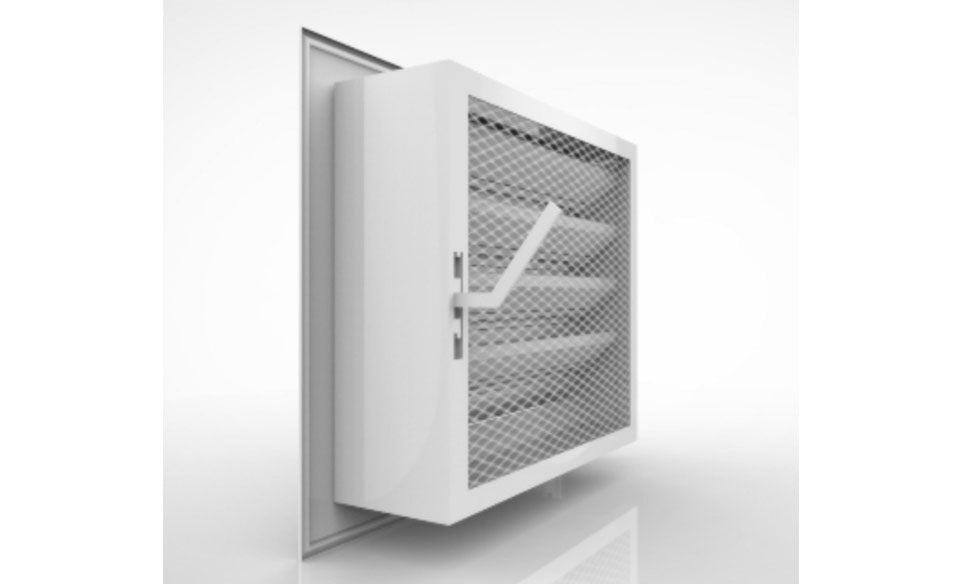

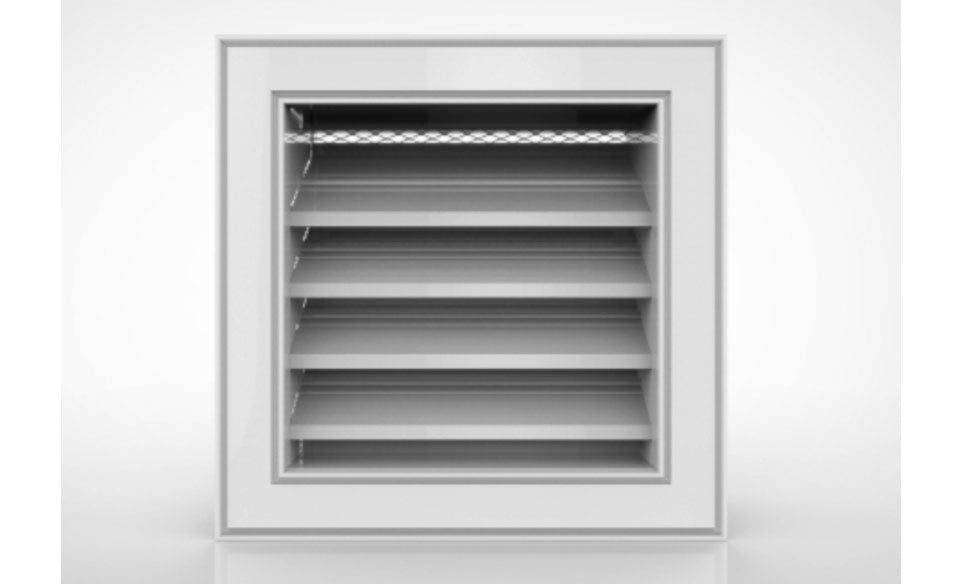

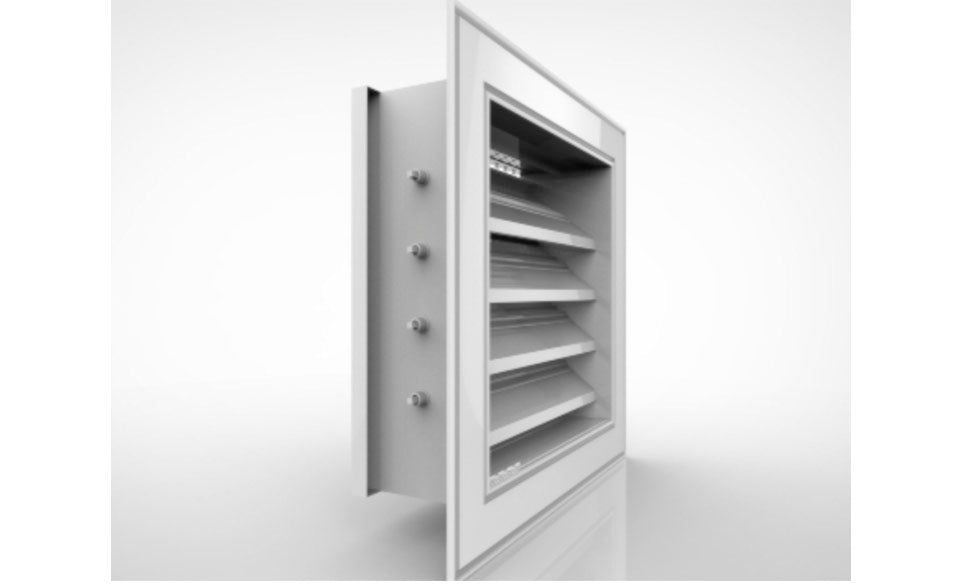

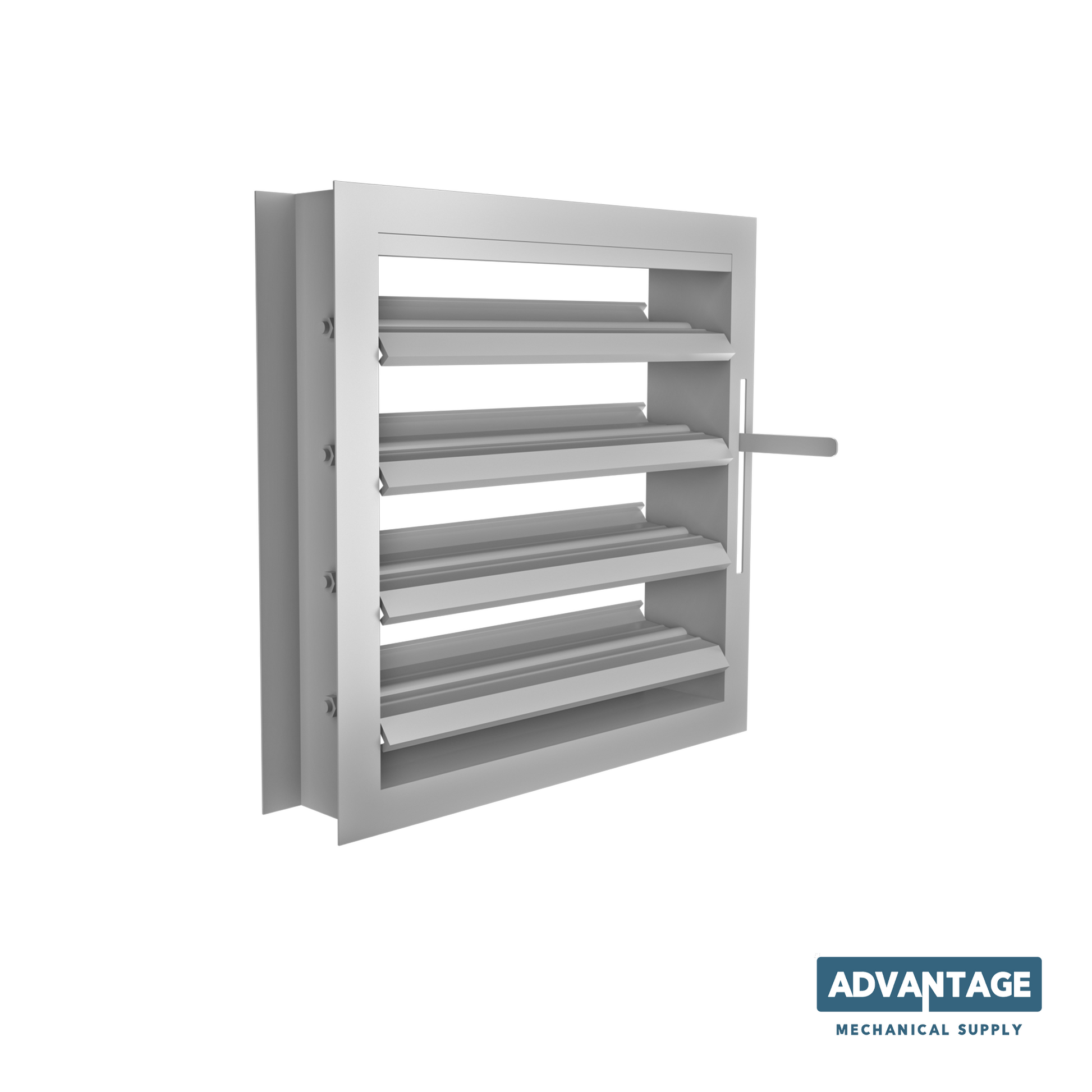

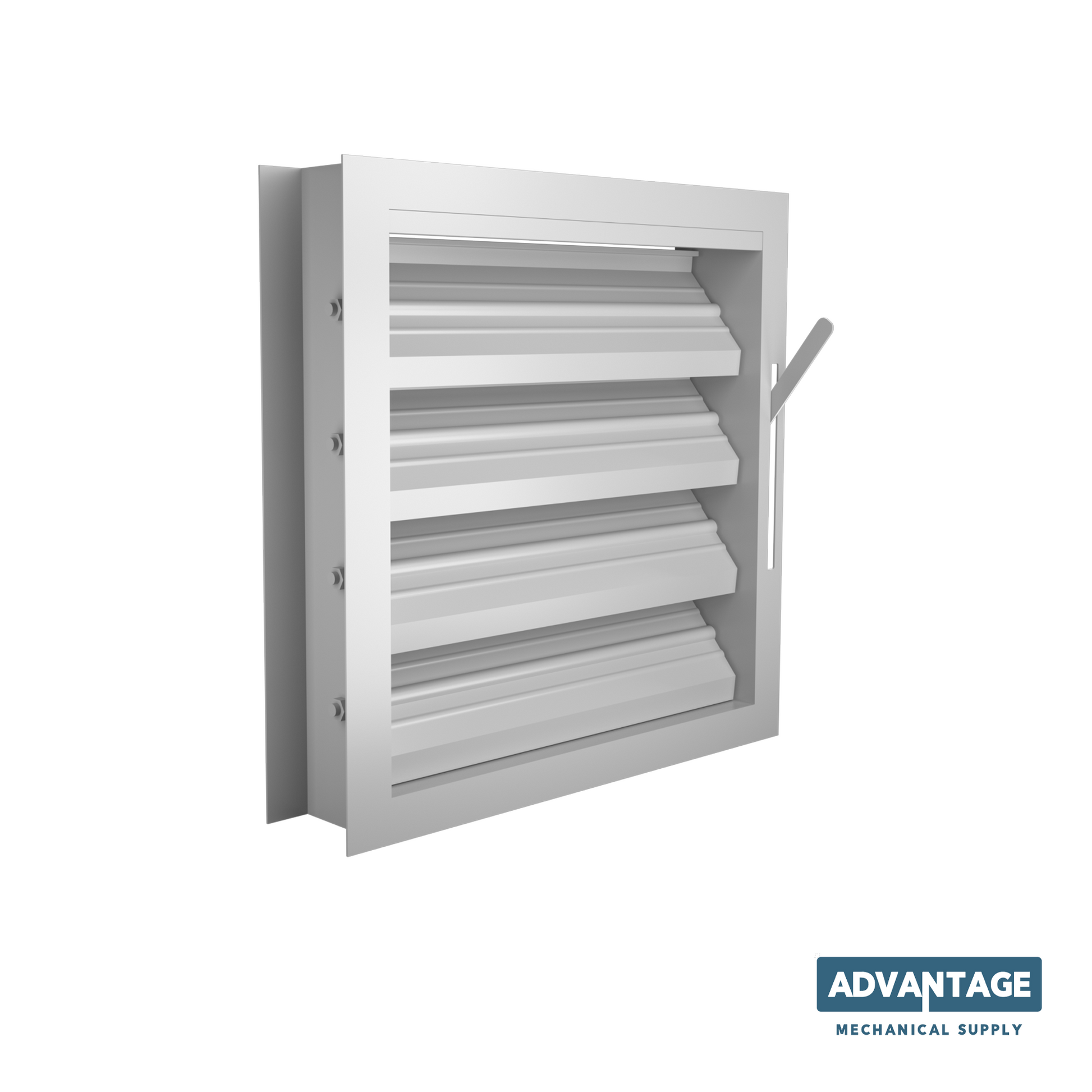

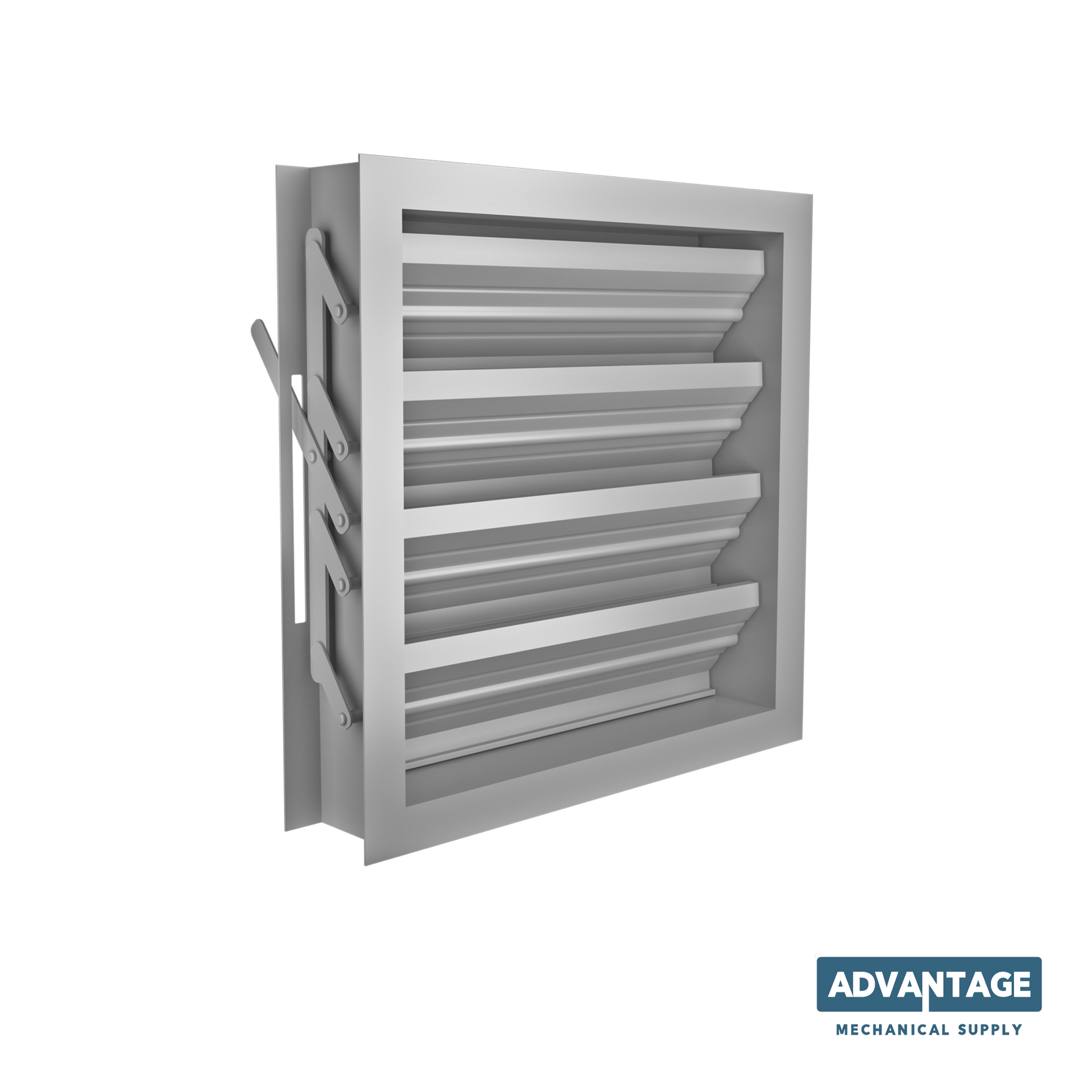

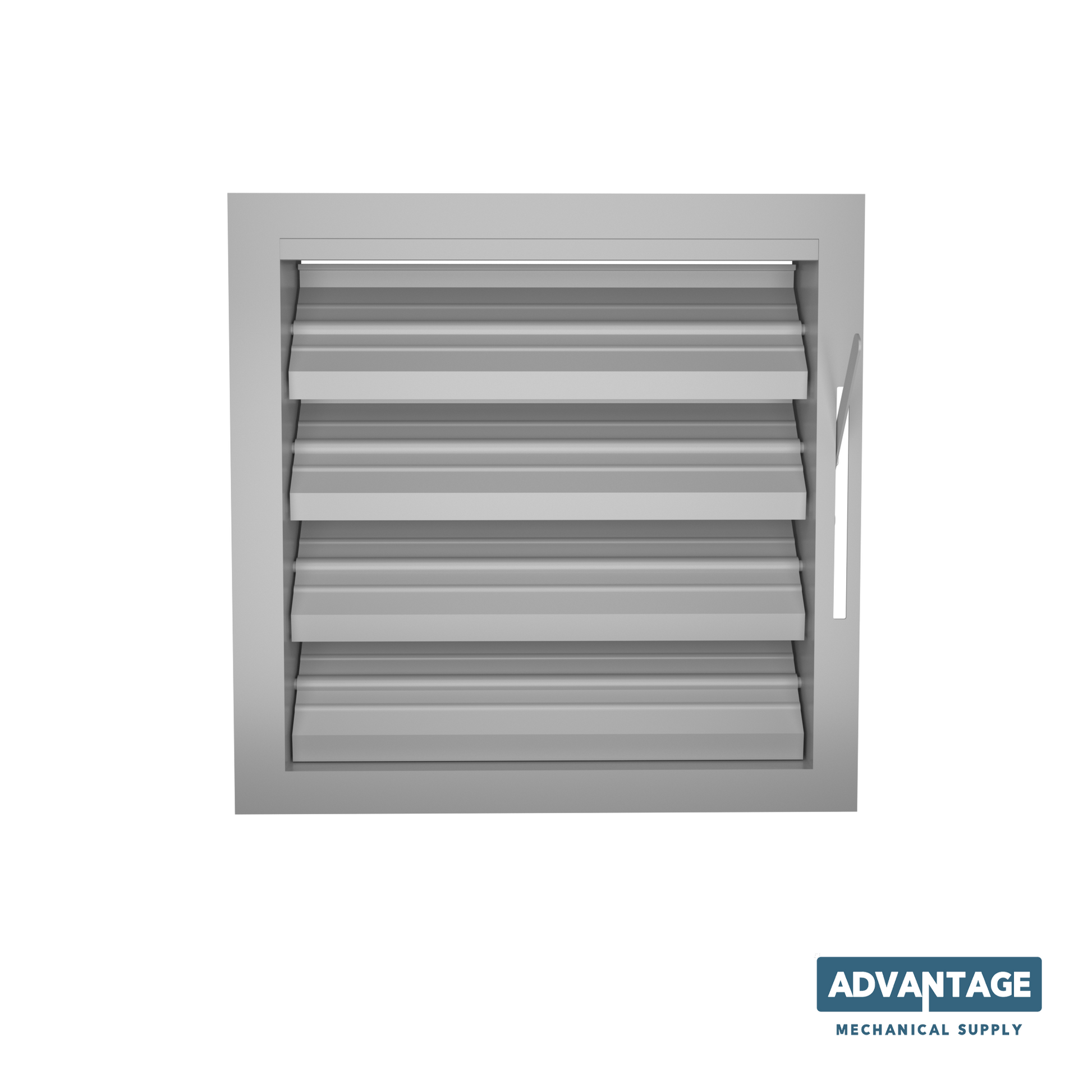

The LA4A louver uses adjustable deflection blades to direct ventilation airflow. Horizontal blades spaced 3” apart sit within a 4”-deep U-frame, with galvanized-steel and aluminum material selections available to suit your project.

Key Features:

  • Adjustable Blades: Deflection blades run parallel to the horizontal dimension with 3” spacing.
  • Frame Depth: Standard 4” U-frame, with an optional 6” frame available by request. Confirm frame depth and installation dimensions before ordering.
  • Material Options: Galvanized steel (LA4A) or tempered aluminum (LA4L). The steel version uses plastic bushings for smoother operation.
  • Size Options: Current rough-opening selections, width × height, are 9” × 9”, 12” × 12”, 15” × 15”, 18” × 18”, 18” × 24”, 21” × 21”, 24” × 24”, 27” × 27”, 30” × 30”, 33” × 33”, 36” × 36”, 39” × 39”, 42” × 42”, 44” × 24”, and 48” × 48”. Contact us for custom sizes and confirm overall frame dimensions before ordering.
  • Bird Mesh Option: Optional bird mesh is available by request; confirm inclusion before ordering.
  • Finish Options: Baked electrostatic polyester paint. White is the standard color; Metallic Gray and Black Matte are additional listed selections. The galvanized-steel material selection has a painted finish, not an unpainted galvanized finish.
  • Availability and Lead Times: This product is not routinely stocked. Configurations are normally made to order. Made-to-order configurations have an estimated production lead time of 3–4 weeks. Shipping transit time is additional. Select your size, finish, and material to view availability for your exact configuration.

No substitutions without approval: If your selected configuration is unavailable, we may contact you with an alternative. We will not substitute the size, material, frame depth, or finish without your approval.

Choose the LA4A for adjustable airflow direction with horizontal blades and a U-frame construction.
