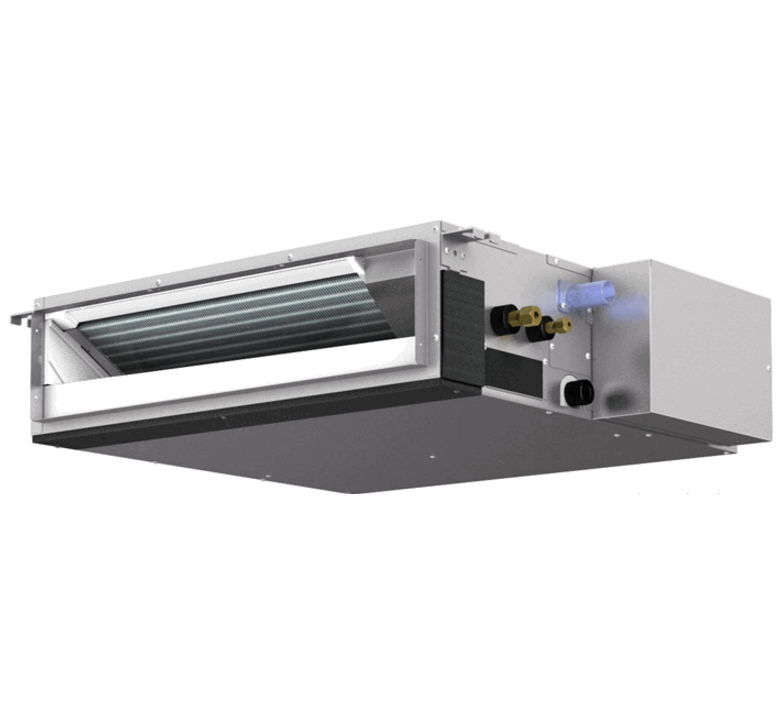

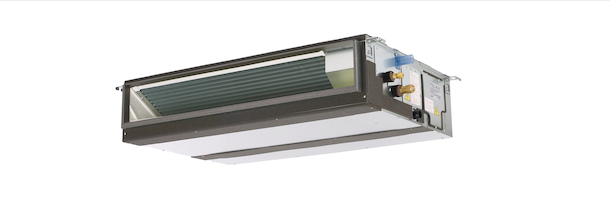

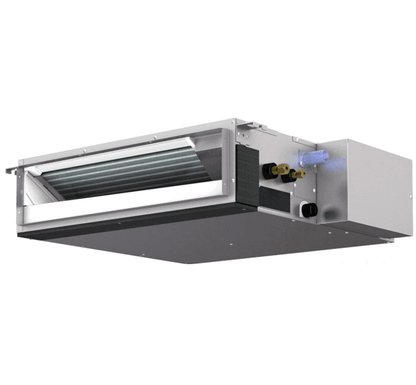

PEAD Model Mid Static Horizontal-ducted

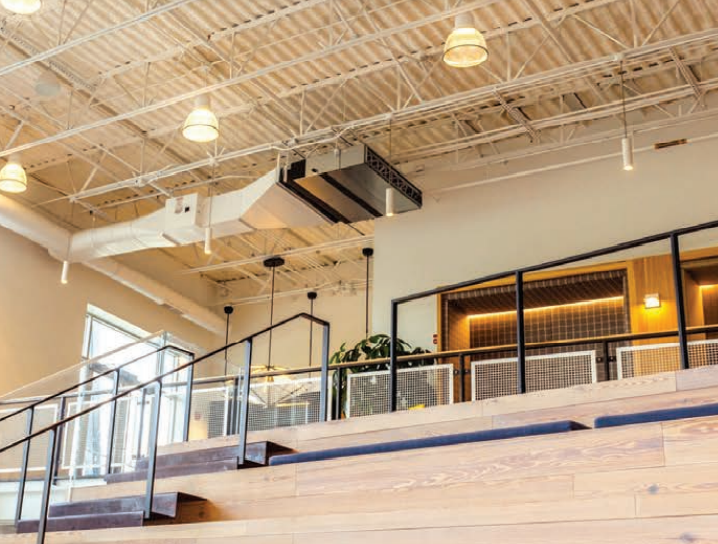

The thin, ceiling-concealed indoor units of this model are the perfect answer for the air conditioning needs of buildings with minimum ceiling installation space and wide-ranging external static pressure. Energy-saving efficiency has been improved, reducing electricity consumption and contributing to a further reduction in operating cost.

Compact Indoor Units

The height is only 9-7/8” for all sizes of this model ranging from 12 to 42 KBTU/H. Its compact size allows for the unit installations in low ceilings with minimal clearance space.

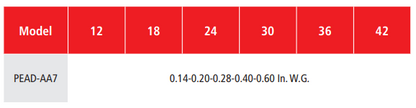

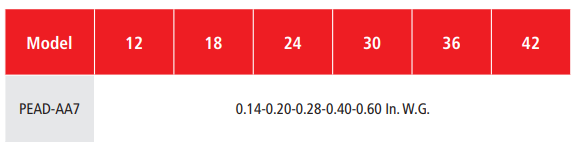

External Static Pressure

External static pressure conversion can be set up to five settings. Capable of being set to a maximum of 0.60 In.W.G., units are applicable to a wide range of building types.

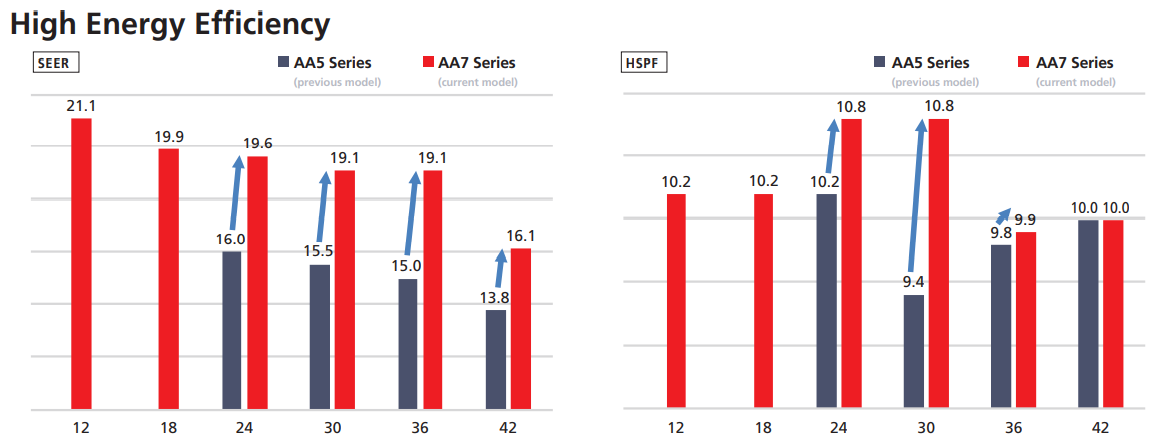

High Energy Efficiency

Built-in Drain Lift Mechanism

All sizes feature a built-in drain lift mechanism for the removal of condensate. A fail-safe mechanism recognizes a high liquid level in the condensate pan and turns off the indoor fan and the outdoor unit compressor to prevent overflow.
