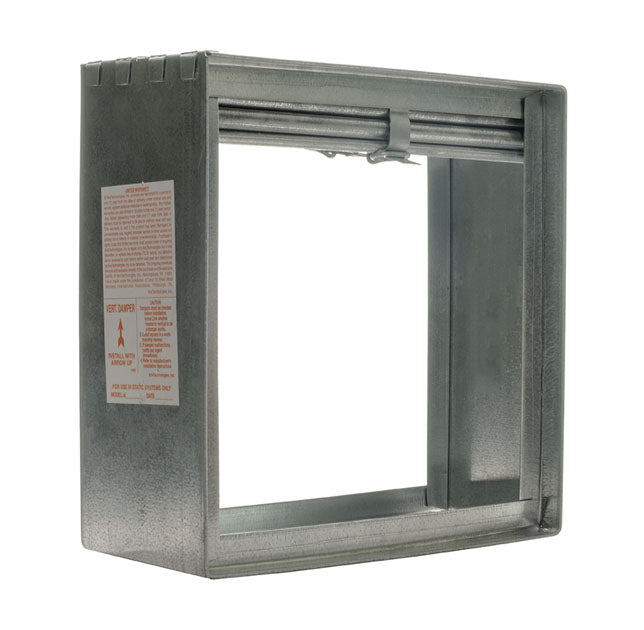

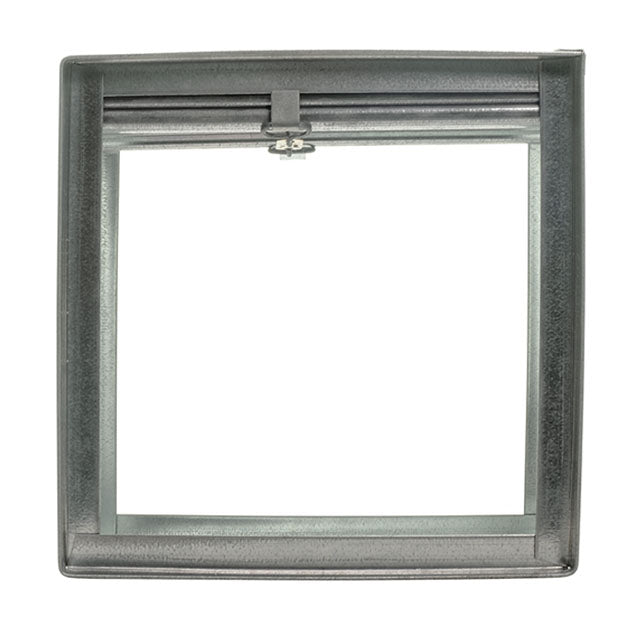

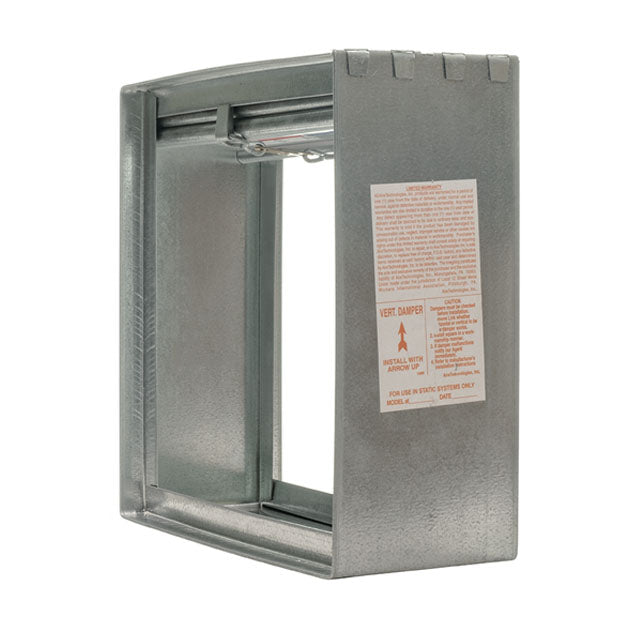

Static Fire Damper - Series 05 Type A

Series 05 Type A - Static Fire Damper

Click here for Submittal

Standard Profile – 4¼” 22Ga 1 Piece Rollformed Frame – Fire Damper
UL Classified UL 555 – 3 Hour Rating, Static for Use in Installations Rated 3 Hours or Greater

Specifications:

Blades

Blades in Air-Stream

Material

Galvanized Steel – Standard
Stainless Steel – Optional

Fusible Link

165° Rated Link
212° Rated Link

Orientation

Available for Vertical or Horizontal Installations

22Ga Optional Sleeves

12” Sleeve – Standard
8”, 17”, 20”, or 24” Lengths – Optional

Vertical Sizes

4” x 4” to 60” x 60”
Multi-section up to 120” x 120”

Horizontal Sizes

4” x 4” to 40” x 60”
Multi-section 120” x 60” or 80” x 96”

These products are custom made and, according to our policy, can not be returned or refunded. Please connect with our team if you need to double check any sizes

When you order an HVAC fire damper, you order it based on the nominal duct size (the interior dimensions of the duct or sleeve opening). We intentionally reduce the physical dimensions of the damper frame by 1/4 inch in both width and height (e.g., a 12" x 12" ordered damper arrives measuring exactly 11-3/4" x 11-3/4").

• Installation Clearance: The 1/4" deduction ensures that the damper frame slips smoothly inside the sleeve or ductwork without forcing, binding, or distorting the frame.
• Thermal Expansion: Fire dampers must operate flawlessly during an emergency. The slight clearance allows room for the metal components to expand under intense heat without jamming the curtain blades.
• Round Transitions: All round fire dampers will include a transition to make the necessary round connection (e.g. an 8" round damper will have a 10" frame measuring exactly 9-3/4" x 9-3/4")

Availability: Estimated production lead time is 7 to 15 days. Select all options to view pricing for your exact configuration.
