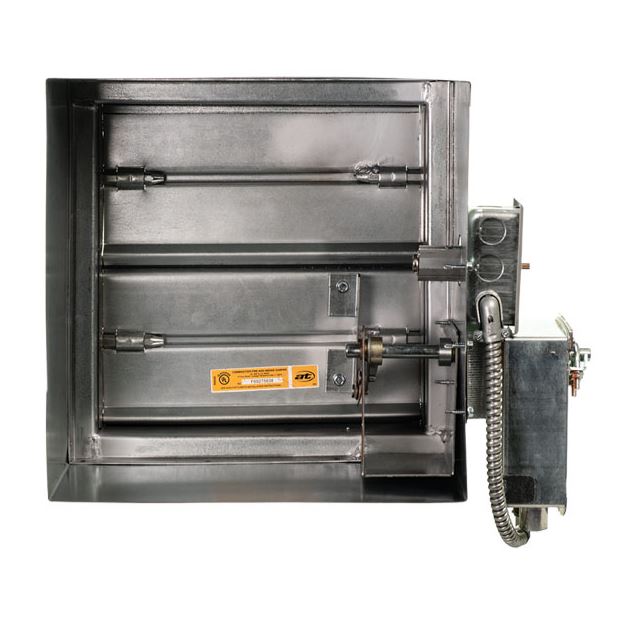

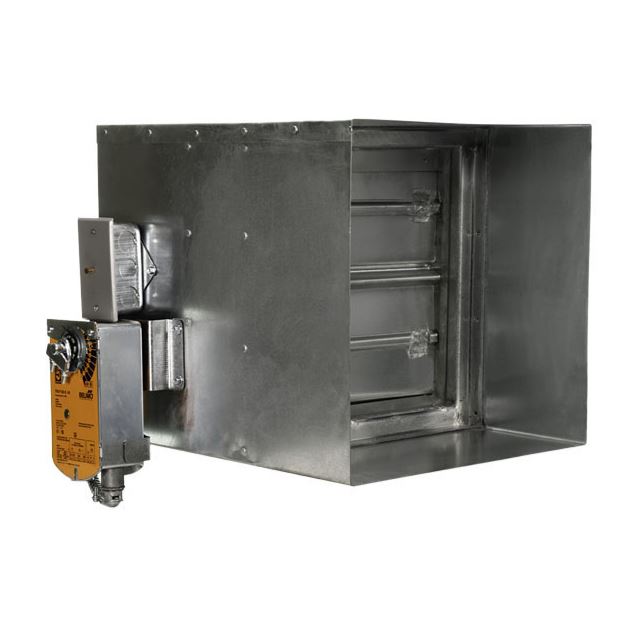

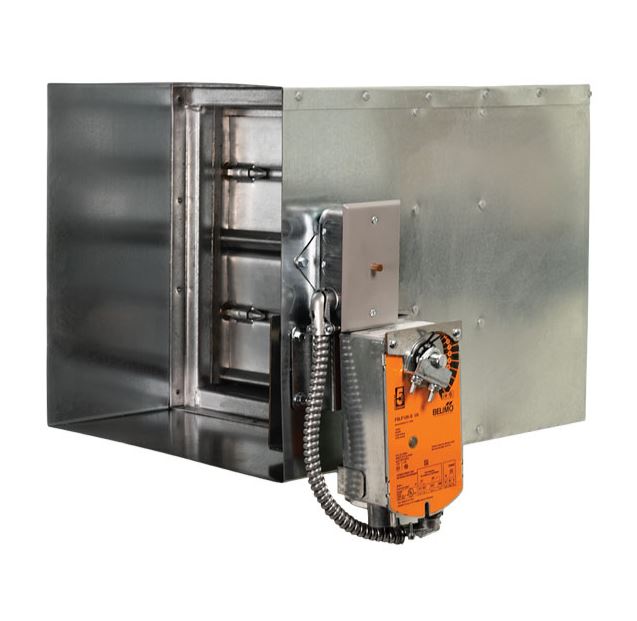

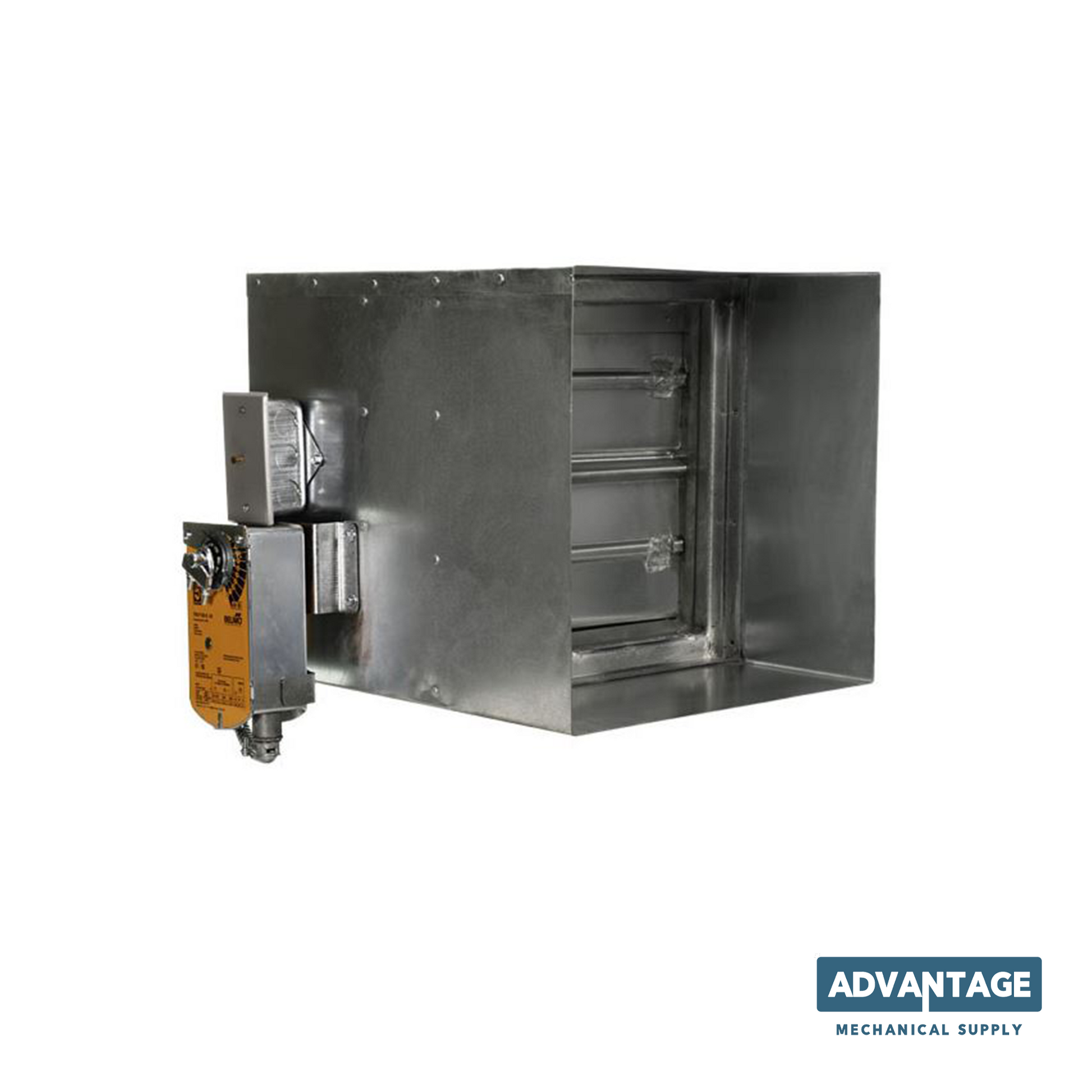

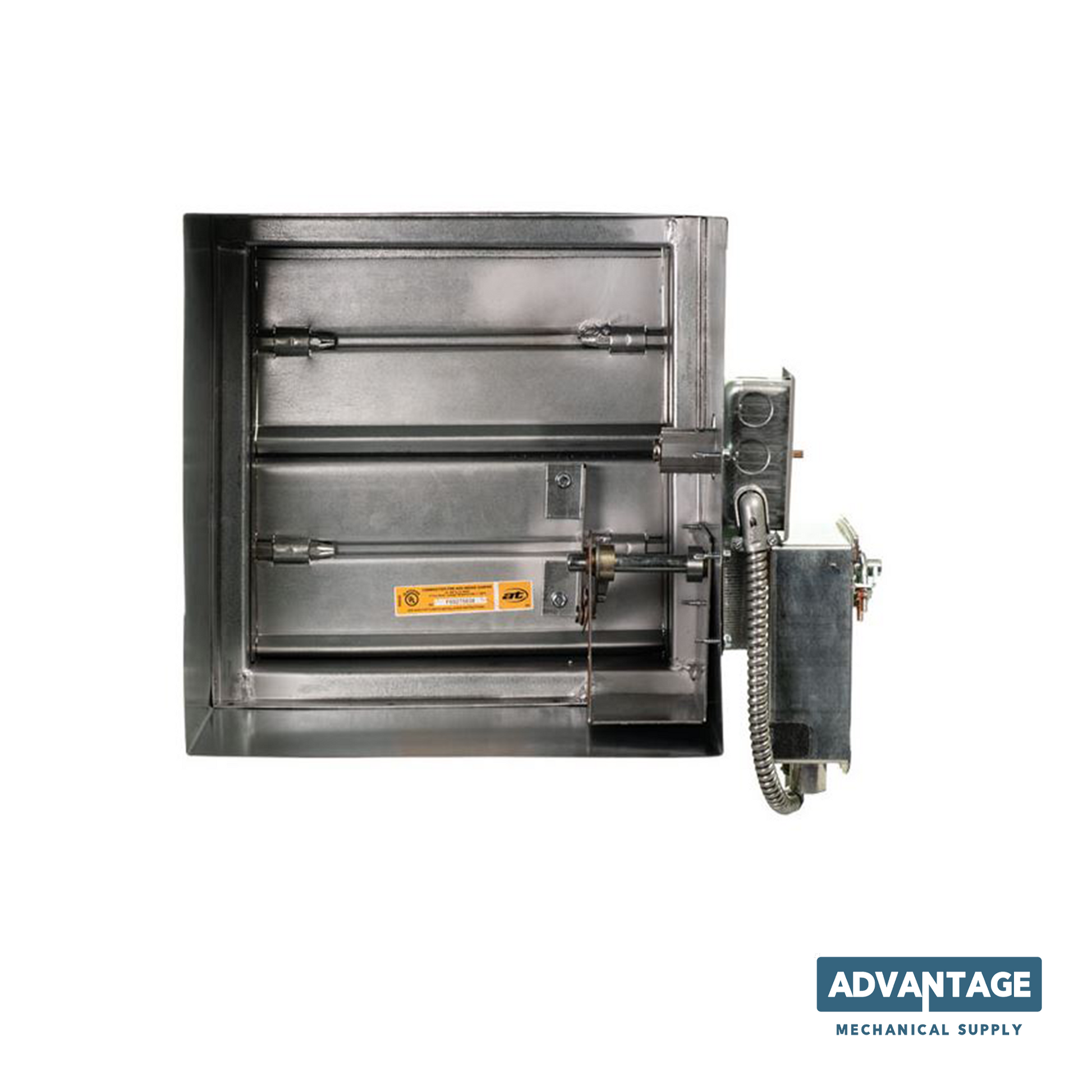

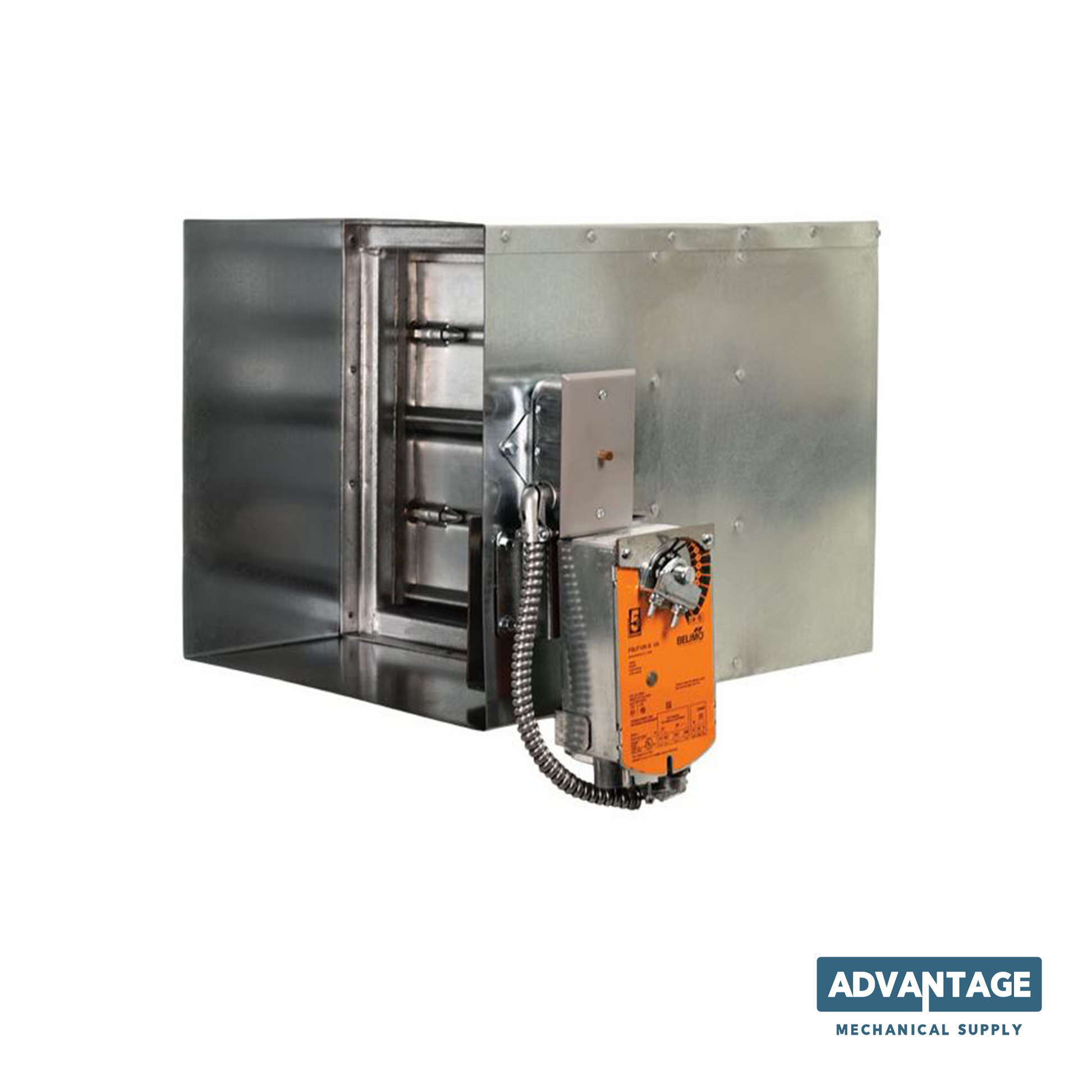

Class I Fire and Smoke Damper - Series 10

Series 10 Fire and Smoke Dampers Class I

Click here for Submittal

UL Classified UL 555 and 555S – Combination Fire and Smoke Damper with 1½ Hour

Rating, for use in installations rated less than three hour

Meets NFPA Standard 90A ICC Building Codes

Specifications:

120 Volts

24 Volts

Leakage Classes

Class 1 – Ultra-Low

Material

Galvanized Steel

Temperature Ratings

250° Rated – Standard
350° Rated – Optional

Thermal Disk Ratings

165° – Standard
212° – Optional

Orientation

Available for Vertical or Horizontal Installations

22Ga Optional Sleeves

17” Sleeve – Standard
20” or 24” Lengths – Optional

Sizes

Available in Single-Section Sizes up to 36” x 48”
Available in Multi-Section Sized up to 144” x 48”

Blades

16Ga Galvanized 3 “V” Formed for Rigidity
Opposed Operation
Double Yoke Kneelock for Increased Stability

Airflow Pressure Ratings

Vertical and Horizontal = 2,000 FPM at 4” W.G. Maximum

Options

Transitions: Rectangle, Round, Oval, or Special
Actuator Type: Electrical

These products are custom made and, according to our policy, can not be returned or refunded. Please connect with our team if you need to double check any sizes

Actuator Location: External

Also available with internal actuator, please contact us.

When you order an HVAC fire damper, you order it based on the nominal duct size (the interior dimensions of the duct or sleeve opening). We intentionally reduce the physical dimensions of the damper frame by 1/4 inch in both width and height (e.g., a 12" x 12" ordered damper arrives measuring exactly 11-3/4" x 11-3/4").

• Installation Clearance: The 1/4" deduction ensures that the damper frame slips smoothly inside the sleeve or ductwork without forcing, binding, or distorting the frame.
• Thermal Expansion: Fire dampers must operate flawlessly during an emergency. The slight clearance allows room for the metal components to expand under intense heat without jamming the curtain blades.
• Round Transitions: All round fire dampers will include a transition to make the necessary round connection (e.g. an 8" round damper will have a 10" frame measuring exactly 9-3/4" x 9-3/4")

Availability: Estimated production lead time is 7 to 15 days. Select all options to view pricing for your exact configuration.
