Aire Technologies

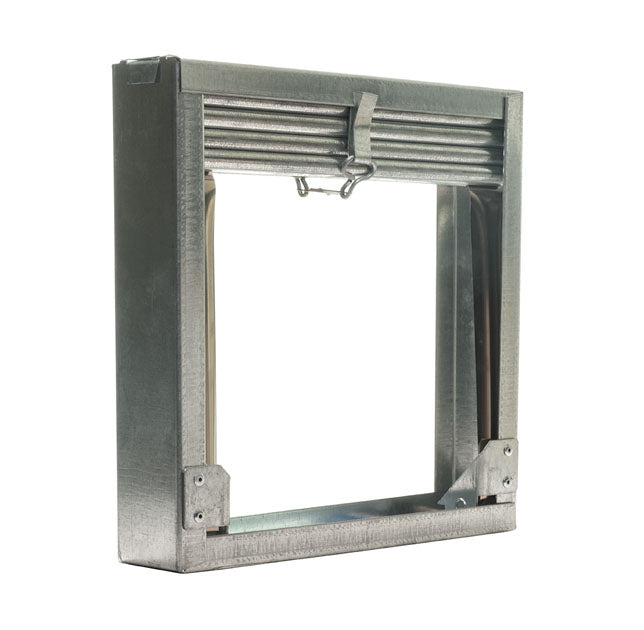

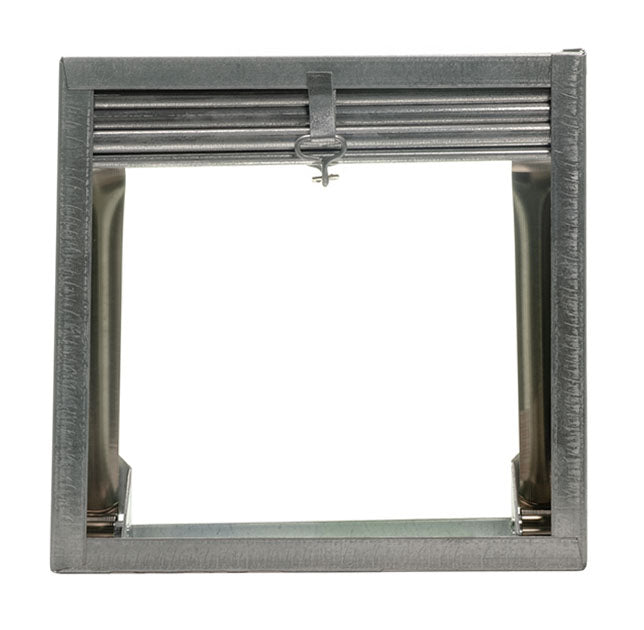

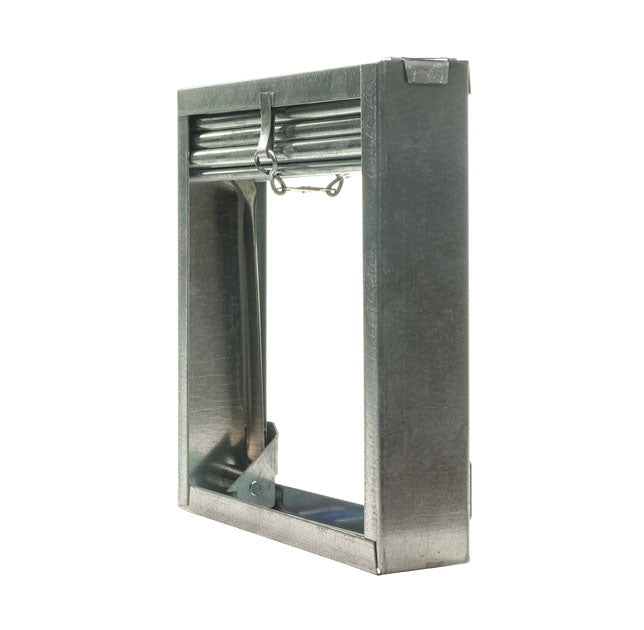

Series 61 Type A - Thinline Dynamic Fire Damper

Regular price $68.30 USD
Regular price $81.96 USD Sale price $68.30 USD
Sale Sold out

Series 61 Type A - Thinline Dynamic Fire Damper

Click here for Submittal

Thinline Dynamic Fire Damper

Thinline Profile Fire Damper – 2” 22Ga 1 Piece Rollformed Frame
Dynamic for Installation in Systems Where Fans Remain Running During Fire and Smoke Control
UL Classified UL 555 – 1½ Hour Rating, Dynamic for Use in Installations Rated Less Than 3 Hours

Specifications:

Blades

Blades in Air-Stream

Material

Galvanized Steel – Standard
Stainless Steel – Optional

Fusible Link

165° Rated Link – Standard
212° Rated Link – Optional

Orientation

Available for Vertical or Horizontal Installations

22Ga Optional Sleeves

12” Sleeve – Standard
8”, 17”, 20”, or 24” Lengths – Optional

Vertical Sizes

4” x 4” to 24” x 24”

Horizontal Sizes

4” x 4” to 12” x 12”

Airflow Pressure Ratings

Vertical: 24” x 24” = 2,000 FPM at 4” W.G.
Vertical: 12” x 12” = 3,000 FPM at 4” W.G.
Horizontal: 12” x 12” = 3,000 FPM at 4” W.G.
