Horizontal Static Fire Damper - Series 75 Type A

Series 75 Type A - Horizontal Static Fire Damper

Click here for Submittal

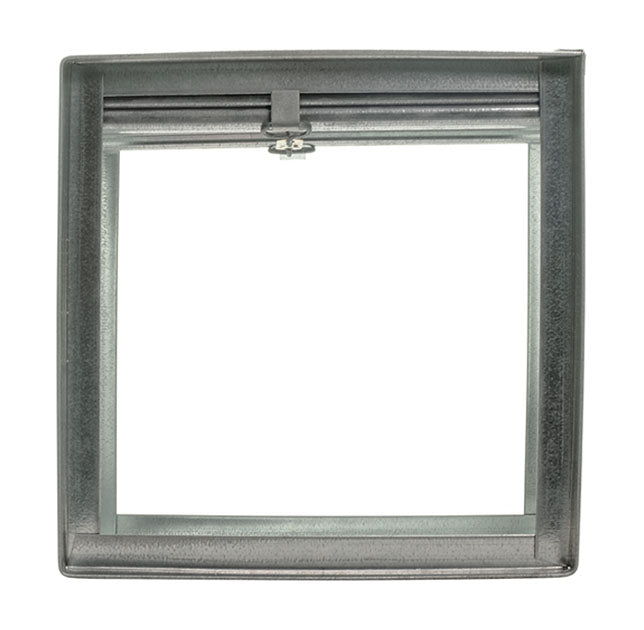

The Series 75 Type-A Horizontal Static Fire Damper is a high-performance fire safety solution designed to protect HVAC systems in commercial and industrial applications. Certified to UL 555 with a 1½-hour fire rating, this damper is for installations rated for less than three hours. Its efficient design ensures seamless airflow and reliable fire protection.

Key Features:

• UL Classified Fire Protection: Certified to UL 555 with a 1½-hour fire rating, ensuring safety and compliance in HVAC systems installed in environments rated below 3 hours.
• Durable Construction: It is built with a 4¼” 22Ga roll-formed frame, offering excellent strength and durability. The standard material is galvanized steel, with optional stainless steel for enhanced corrosion resistance.
• Free Area Design: The damper blades and frame are out of the air stream, providing 100% free area for uninterrupted airflow and efficient performance.
• Versatile Installation: Designed for horizontal installations, with round collar options that integrate seamlessly into standard ducting systems. It is also available in various sizes to suit different HVAC system configurations.
• Customizable Sleeves: The standard 12” sleeve is available in optional lengths of 8”, 17”, 20”, or 24” for tailored installation flexibility.
• Fusible Link Options: A 165° fusible link is standard, with a 212° fusible link available for higher-temperature applications.

Size Availability:

• Horizontal Installations: Available in sizes from 4” to 38” (oval/rectangular configurations available from 6” x 6” to 38” x 52”).

Applications: The Series 75 Type A Fire Damper is designed for commercial, industrial, and residential HVAC systems where static fire protection is essential. It is ideal for office buildings, hospitals, hotels, and retail centers.

Finish: This product has a standard galvanized steel construction, with the option of stainless steel for enhanced durability and resistance to corrosive environments.

Ensure Compliance and Safety:
The Series 75 Type A Horizontal Static Fire Damper provides a reliable, cost-effective solution for fire-rated HVAC systems. It offers efficient airflow and critical fire protection to safeguard building occupants and infrastructure.

These products are custom made and, according to our policy, can not be returned or refunded. Please connect with our team if you need to double check any sizes

When you order an HVAC fire damper, you order it based on the nominal duct size (the interior dimensions of the duct or sleeve opening). We intentionally reduce the physical dimensions of the damper frame by 1/4 inch in both width and height (e.g., a 12" x 12" ordered damper arrives measuring exactly 11-3/4" x 11-3/4").

• Installation Clearance: The 1/4" deduction ensures that the damper frame slips smoothly inside the sleeve or ductwork without forcing, binding, or distorting the frame.
• Thermal Expansion: Fire dampers must operate flawlessly during an emergency. The slight clearance allows room for the metal components to expand under intense heat without jamming the curtain blades.
• Round Transitions: All round fire dampers will include a transition to make the necessary round connection (e.g. an 8" round damper will have a 10" frame measuring exactly 9-3/4" x 9-3/4")

Availability: Estimated production lead time is 7 to 15 days. Select all options to view pricing for your exact configuration.
