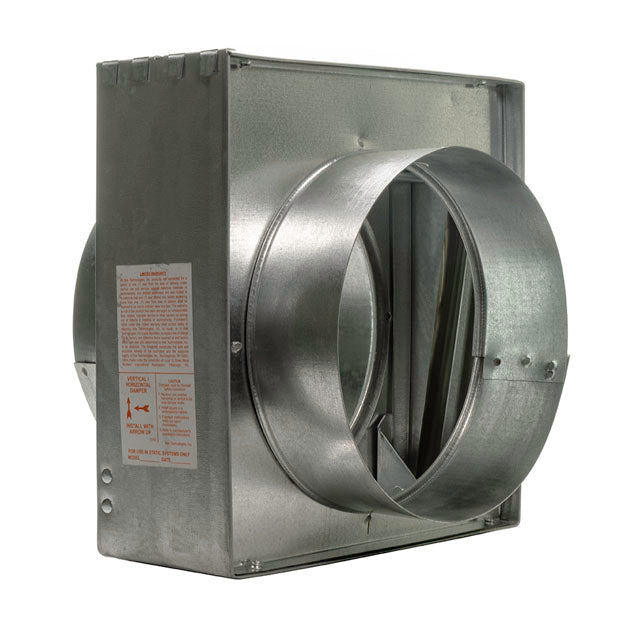

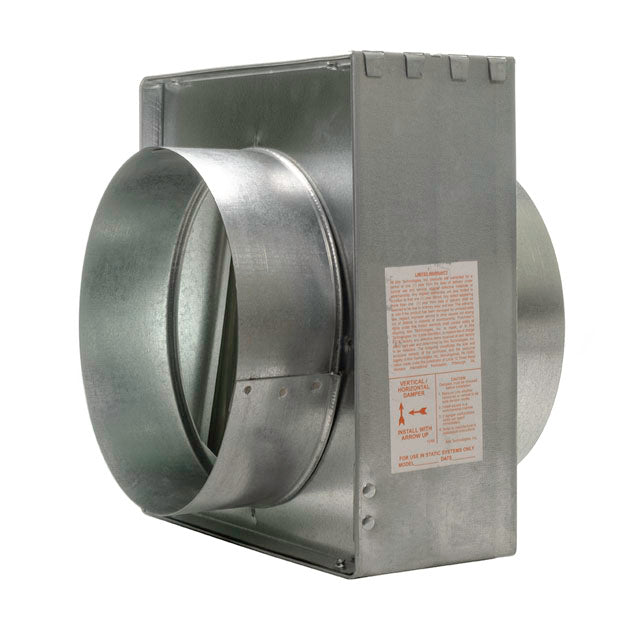

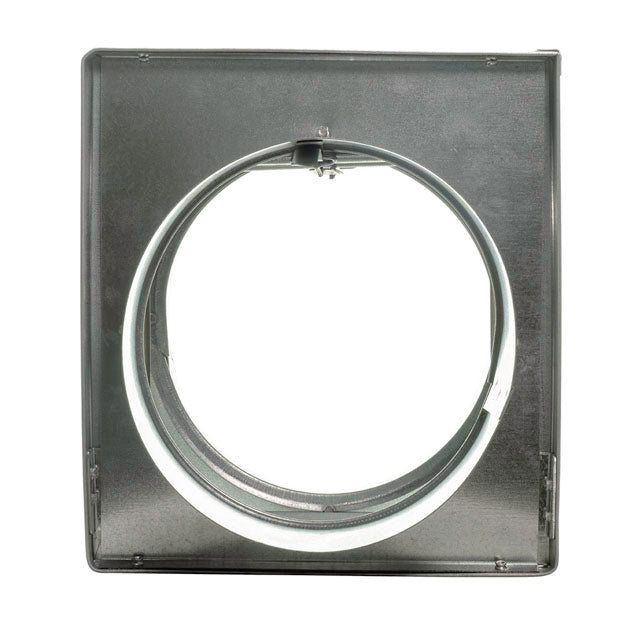

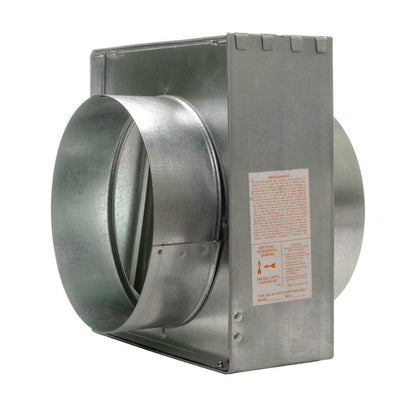

Series 75 Type C - Horizontal Static Fire Damper with Round Collar

Series 75 Type C - Horizontal Static Fire Damper

Click here for Submittal

Standard Profile Fire Damper – 4¼” 22Ga 1 Piece Rollformed Frame
UL Classified UL 555 – 1½ Hour Rating, Static for Use in Installations Rated Less Than 3 Hours.

Specifications:

Blades

Blades and Frame Out of Air-Stream 100% Free Area

Material

Galvanized Steel – Standard
Stainless Steel – Optional

Fusible Link

165° Rated Link – Standard
212° Rated Link – Optional

Orientation

Available for Vertical or Horizontal Installations Available with Round, Oval, or Rectangular Collars

22Ga Optional Sleeves

12” Sleeve – Standard
8”, 17”, 20”, or 24” Lengths – Optional

Vertical Sizes

4” to 53”
Oval and Rectangular 6” x 6” to 58” x 52”

Horizontal Sizes

4” to 38”
Oval and Rectangular 6” x 6” to 38” x 52”
