Colección: Difusores Drop Box

Los difusores de caja se instalan directamente debajo de una unidad de techo o paquete y distribuyen el aire acondicionado por espacios abiertos sin necesidad de conductos. Compre cajas de techo de 4 y 6 direcciones con rejillas cilíndricas o aspas de doble deflexión, además de difusores de caja concéntricos que integran el suministro y el retorno en una sola carcasa. Las configuraciones de montaje al ras, de perfil bajo, en ángulo recto y desplazadas se adaptan a techos terminados, espacios de plenos reducidos y unidades cuyas aberturas no coinciden con la dirección en la que debe fluir el aire. Envíenos la marca, el modelo y la capacidad en toneladas de su unidad RTU, y nosotros le proporcionaremos la caja adecuada.

Comprar por tipo: Solo suministro | Suministro y retorno

Cómo funciona un difusor tipo drop box

Un drop box es un pleno de lámina metálica que cuelga debajo de una unidad de techo de flujo descendente y descarga aire a través de rejillas en 4 o 6 lados. Reemplaza un sistema de conductos completo en edificios con estructura expuesta: grandes almacenes, almacenes, gimnasios, iglesias, restaurantes y talleres mecánicos. El aire sale del box horizontalmente y se dispersa antes de llegar a las personas, por lo que 1 box cubre un gran espacio abierto.

Frequently asked questions

What is a drop box diffuser?

A drop box diffuser is a sheet metal housing that mounts directly under a downflow rooftop or package unit and discharges air through louvers on multiple sides. It distributes conditioned air across open spaces without a duct system, which makes it the standard choice for warehouses, retail stores, gyms, and other buildings with exposed structure.

What’s the difference between a drop box and a concentric diffuser?

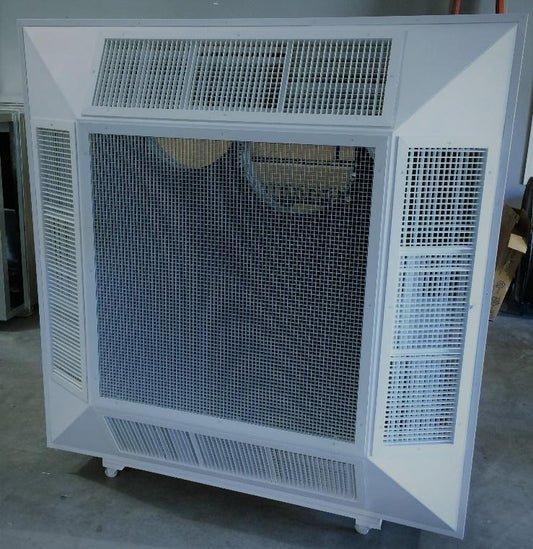

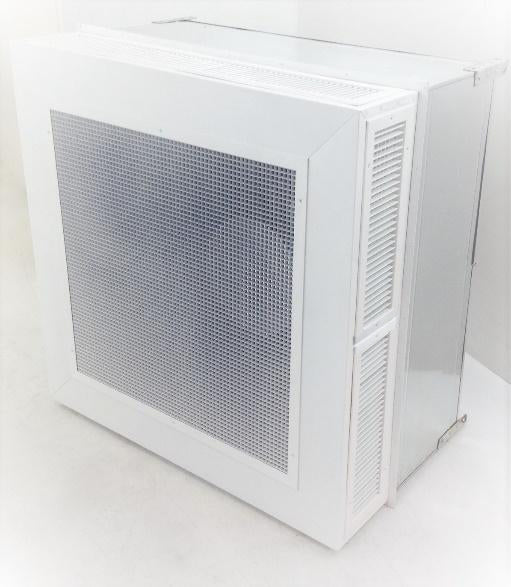

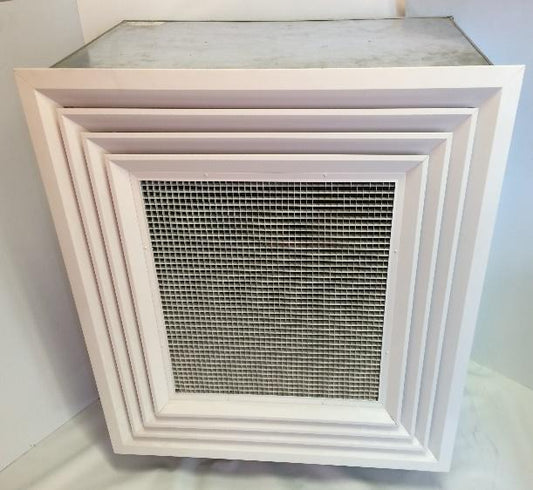

A standard drop box handles supply air only; return air comes back through a separate opening. A concentric diffuser combines supply and return in one housing, with supply air discharging around the outside and return air pulling through the center. Concentric models need just one ceiling penetration per rooftop unit.

How do I size a ceiling drop box?

Size it to the rooftop unit it serves. You’ll need the unit’s tonnage or CFM and the dimensions and layout of its supply and return openings. Send the RTU make and model with your quote request and we’ll match the box, including whether you need a right-angle or offset configuration.

Should I choose drum louvers or double deflection?

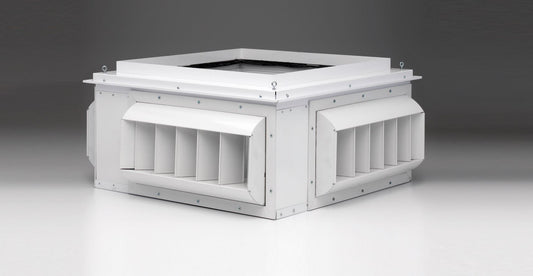

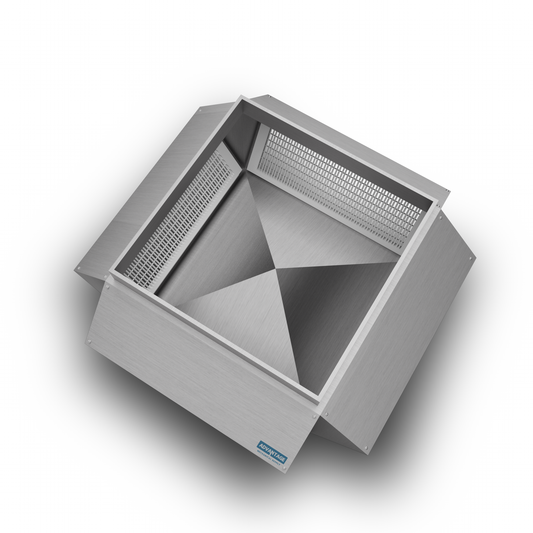

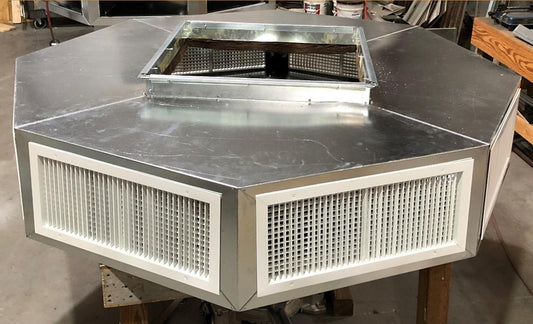

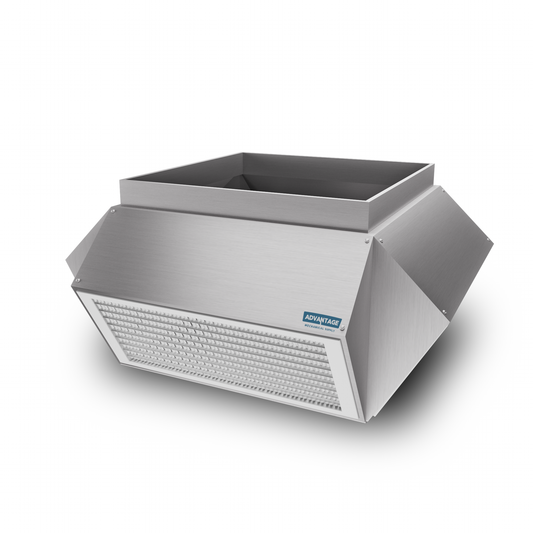

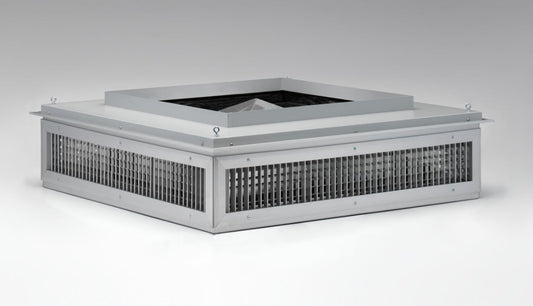

Choose drum louvers for high ceilings and long throws, since each drum aims a concentrated stream of air that travels farther. Choose double deflection when you need more control over where air lands at shorter distances, because the 2 sets of adjustable blades spread and direct air both vertically and horizontally.

4-way or 6-way drop box?

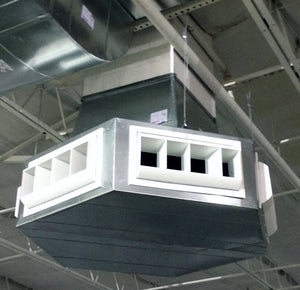

A 6-way drop box spreads air more evenly in every direction, which works best when the unit sits near the center of the space. A 4-way box suits rectangular zones and units positioned closer to a wall, where throwing air into the wall would waste capacity.

Can a drop box diffuser go in a drop ceiling?

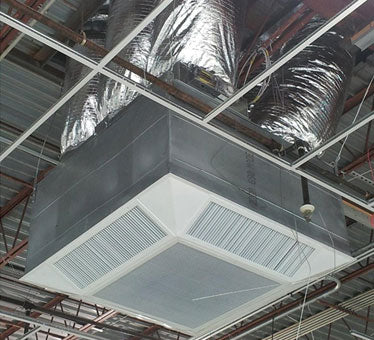

Yes, with a flush-mount model. Flush-mount concentric diffusers sit in the ceiling plane instead of hanging below it, and the low-profile version fits shallow plenums. Standard hanging drop boxes are meant for exposed structure with no finished ceiling.

How long does shipping take for drop box diffusers?

Drop boxes ship by pallet because of their size. In-stock, ready-to-ship units arrive within 2 to 5 days after they ship, depending on your location. Made-to-order drop boxes have their own production time, listed on the product page and in your order confirmation. If your rooftop unit install is on a fixed schedule, contact us before ordering to ask about expedited production or delivery. Shipping to Alaska, Hawaii, U.S. territories, and Canada is quoted separately.
